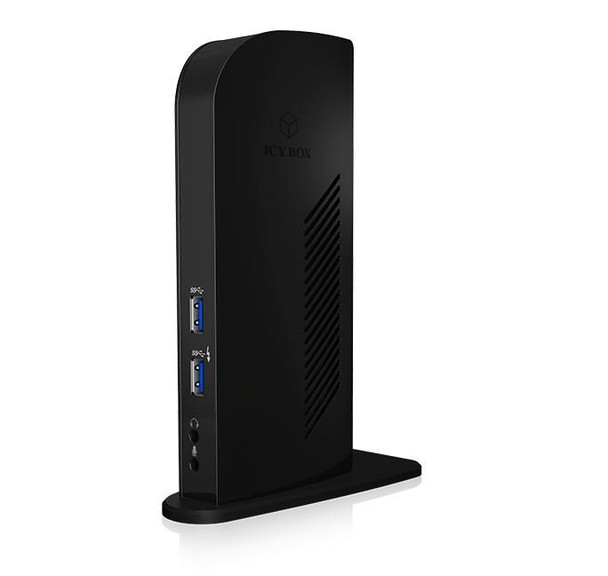

ICY BOX IB-DK2242AC Wired Usb 3.2 Gen 1 3.1 Gen IB-DK2242AC

A bit of everything
With just one USB Type-A or Type-C ™ connector your notebook gains eleven additional ports: 6x USB 3.0, Gigabit LAN, 2x DisplayPort ™, as well as headphone and microphone ports. This makes the docking station a real general-purpose talent.

Stands firm
The high quality base ensures that the IB-DK2242AC does not get out of balance. Together with the variety of connections, it is a great team when it comes to keep your workplace tidy. This saves space and nerves.

High resolution
The IB-DK2242AC supports a resolution of up to 4K@60 Hz each for two monitors or one single 5K@60Hz display with two cables connected via DisplayPort™. This sharpens your high resolution experience greatly

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case gross weight



12.3 kg


Master (outer) case height



31 cm


Master (outer) case length



50 cm


Master (outer) case width



31 cm


Products per master (outer) case



9 pc(s)


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Wake-on-LAN ready



Yes


Other features



Chipset



DisplayLink DL6950 VL813


Package dimensions



Depth (package,cm)



29 cm


Gross Weight (Package, kg)



1.65 kg


Height (package,cm)



15.5 cm


Width (package,cm)



9 cm


Packaging content



AC adapter included



Yes


Cables included



USB Type-C to USB Type-B, USB, USB Type-A to USB Type-B


Drivers included



Yes


Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



No


Data transfer rate



5000 Gbit/s


HD type



5K Ultra HD


Housing material



Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)


Maximum digital resolution



5120 x 2880 Pixels


Maximum refresh rate



60 Hz


Number of displays supported



2


On/off switch



Yes


Product colour



Black


UASP support



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


DisplayPorts quantity



2


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-A


Microphone in



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



6


Power



AC input frequency



50 - 60 Hz


AC input voltage



100-240 V


Input current



1.3 A


Output current



2.25 A


Output voltage



20 V


Power source type



AC


Product dimensions



Net Weight (Product, kg)



1.27 kg


Product Depth



19.5 cm


Product Height



12.5 cm


Product Width



7 cm


Software



Mac compatibility



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
