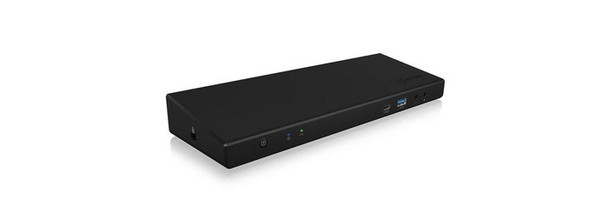

ICY BOX IB-DK2244AC Wired Usb 3.2 Gen 1 3.1 Gen IB-DK2244AC

Always prepared
This high performance DockingStation can be used with both current Windows� and macOS� operating systems. Thus, the IB-DK2244AC is the perfect companion for eager travellers, business and multimedia enthusiasts who want to be prepared for all environments.

One connection
Notebooks and other mobile devices are getting thinner and smaller. This is usually at the expense of connectivity options � even the widespread RJ45 LAN port or extra USB inputs are often drastically reduced as are connections for video transmission, that many display devices require. The IB-DK2244AC offers a wide variety of interfaces and makes this an issue of the past.

High resolution
The IB-DK2244AC is equipped with five display video outputs. With triple Ultra HD displays simultaneously, the DockingStation allows you to split up the content to three display devices when the system supports the function, to mirror your primary screen or extend the computers desktop allowing visibility of more applications at the same time. It supports a resolution of up to 4096x2160@60 Hz for two monitors or one single 5K@60Hz display with two cables connected via DisplayPort� and fulfils your high resolution desires.

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case gross weight



14.7 kg


Master (outer) case height



31 cm


Master (outer) case length



49.5 cm


Master (outer) case width



30.5 cm


Products per master (outer) case



9 pc(s)


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Other features



Cable length



1 m


Package dimensions



Depth (package,cm)



9.5 cm


Gross Weight (Package, kg)



2.02 kg


Height (package,cm)



15.5 cm


Width (package,cm)



29 cm


Packaging content



AC adapter included



Yes


Cables included



USB Type-C to USB Type-C


Interface adapters included



USB Type-A male - USB Type-C female


Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Cable lock slot



Yes


Card reader integrated



No


Charging function



Yes


Data transfer rate



5 Gbit/s


HD type



5K Ultra HD


Housing material



Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)


Maximum digital resolution



5120 x 2880 Pixels


Maximum refresh rate



60 Hz


Number of displays supported



3


Plug and Play



Yes


Product colour



Black


UASP support



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


DisplayPort version



1.2


DisplayPorts quantity



2


HDMI ports quantity



3


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



5


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Power Delivery



Yes


USB Power Delivery revision



2.0


USB Power Delivery up to



60 Watt


USB Type-C DisplayPort Alternate Mode



Yes


Power



Output current



6.75 A


Output voltage



50 V


Power source type



DC


Power supply



135 Watt


Product dimensions



Net Weight (Product, kg)



1.55 kg


Product Depth



8 cm


Product Height



3.5 cm


Product Width



25 cm


Software



Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
