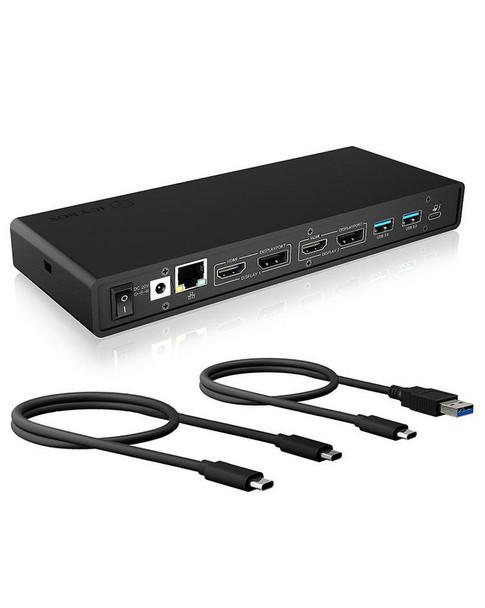

ICY BOX IB-DK2245AC Wired Usb 3.2 Gen 1 3.1 Gen IB-DK2245AC

High resolution
The IB-DK2245AC is equipped with four display video outputs. With triple Ultra HD displays simultaneously, the DockingStation allows you to split up the content to three display devices when the system supports the function, to mirror your primary screen, or extend the computer's desktop allowing visibility of more applications at the same time. It supports a resolution of up to 4096x2160@60 Hz for two monitors or one single 5K@60 Hz display with two cables connected via DisplayPort™ and fulfills your high resolution desires.

Big flexibility
This high-performance DockingStation can be used with both current Windows® and macOS® operating systems. Thus, the IB-DK2245AC is the perfect companion for eager travelers, business, and multimedia enthusiasts who want to be prepared for all environments.

One port
Notebooks and other mobile computers are becoming thinner and smaller. This is usually at the expense of connectivity - even the widely used RJ45 LAN port or multiple USB ports are often omitted, as are video connections, which are required by many display devices. The IB-DK2245AC offers a large selection of ports and can eliminate this lack permanently.

Logistics data



Master (outer) case gross weight



13.6 kg


Master (outer) case height



30 cm


Master (outer) case length



52 cm


Master (outer) case width



28.5 cm


Products per master (outer) case



10 pc(s)


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Wake-on-LAN ready



Yes


Package dimensions



Depth (package,cm)



27 cm


Gross Weight (Package, kg)



1.66 kg


Height (package,cm)



13.5 cm


Width (package,cm)



10 cm


Packaging content



AC adapter included



Yes


Cables included



AC, USB Type-A to USB Type-C, USB Type-C to USB Type-C


Manual



Yes


Performance



Cable lock slot



Yes


Cable lock slot type



Kensington


Card reader integrated



No


Data transfer rate



5 Gbit/s


HD type



5K Ultra HD


Housing material



Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)


Maximum digital resolution



5120 x 2880 Pixels


Maximum refresh rate



60 Hz


On/off switch



Yes


Product colour



Black


Ports & interfaces



Combo headphone/mic port



No


Connectivity technology



Wired


DC-in jack



Yes


DisplayPort version



1.2


DisplayPorts quantity



2


HDMI ports quantity



2


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Line-in



Yes


Line-out



Yes


Microphone in



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



2


USB Power Delivery



Yes


USB Power Delivery up to



65 Watt


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



2 A


Output current



5 A


Output voltage



20 V


Power source type



DC


Power supply



100 Watt


Product dimensions



Net Weight (Product, kg)



1.28 kg


Product Depth



22.4 cm


Product Height



2.6 cm


Product Width



8.3 cm


Software



Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
