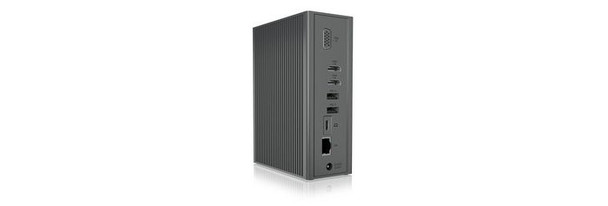

ICY BOX IB-DK2262AC Wired Usb 3.2 Gen 1 3.1 Gen IB-DK2262AC

Rugged aluminium design
The IB-DK2262AC's solid housing is made of strong aluminium alloy, which makes this housing more durable than ordinary aluminium or plastic products, effectively protecting the DockingStation and equipping it for a wide range of use conditions. The aluminium material and the heat sink design with cooling fins support heat dissipation for an excellent passive cooling effect and protect the unit from overheating even under heavy use.

Triple video output
The IB-DK2262AC provides up to three video interfaces of different resolutions with two HDMI� and one VGA connection, enabling the simultaneous connection of HDMI� and VGA display devices in expansion mode. This is achieved by combining state-of-the-art technologies such as DisplayLink� and DisplayPort� Alt Mode.

LAN port � fast and safe
Wireless devices are certainly more convenient and good to use in many situations, and yet there are better options if you need high data transfer rates, for example. In addition, wired connections are more secure than wireless connections. Especially if you don�t want to or can�t fully exploit the security measures available via WLAN, LAN connections offer less risk. Then an Ethernet interface is the best way to transfer files between devices with high security and maximum transfer rate.

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case gross weight



14.3 kg


Master (outer) case height



45.5 cm


Master (outer) case length



35 cm


Master (outer) case width



21 cm


Products per master (outer) case



12 pc(s)


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Package dimensions



Gross Weight (Package, kg)



1.51 kg


Packaging content



AC adapter included



Yes


Cables included



AC, USB Type-C to USB Type-C


Interface adapters included



USB Type-A male - USB Type-C female


Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), SD


HD type



4K Ultra HD


Housing material



Aluminium


LED indicators



Power


Maximum analog resolution



1920 x 1080 Pixels


Maximum digital resolution



3840 x 2160 Pixels


Maximum refresh rate



60 Hz


Number of displays supported



3


Product colour



Anthracite


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


HDMI ports quantity



1


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



No


USB 2.0 ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



2


USB Power Delivery



Yes


USB Power Delivery up to



55 Watt


VGA (D-Sub) ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100-240 V


Output current



3.25 A


Output voltage



20 V


Power source type



AC


Power supply



65 Watt


Product dimensions



Net Weight (Product, kg)



1.16 kg


Product Depth



14 cm


Product Height



10.3 cm


Product Width



5 cm


Software



Mac operating systems supported



Y, Yes


Other operating systems supported



ChromeOS


Windows operating systems supported



Windows 10, Windows 11, Windows 8


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
