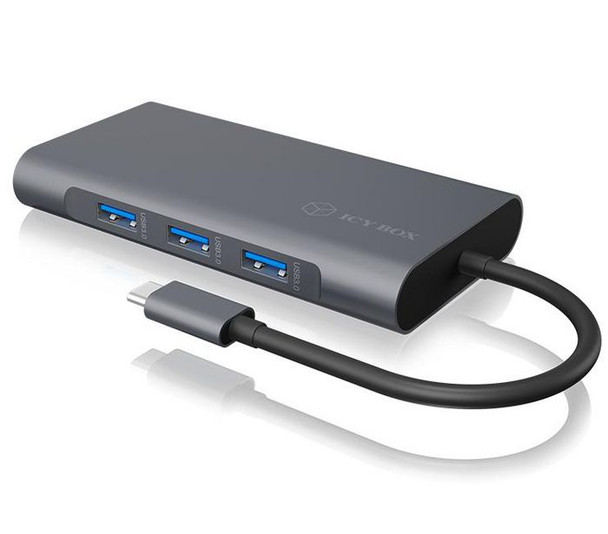

ICY BOX IB-DK4040-CPD Wired Usb 3.2 Gen 1 3.1 Gen IB-DK4040-CPD

Easy connection - multiple benefits
Perfectly combines a high-quality appearance and efficient technology with a very compact size. The premium aluminum DockingStation does not only look good but also offers high comfort while using. This solution is suited for any location such as private or office areas.

Small but strong
The Type-C� connection offers incredible versatility. It combines data transmission, video output and power in a single, compact port. The integration of USB Type-C� makes the connection even more practical, as it has a twist-proof connection as its physical feature - making it a truly universal connection.

Always informed
The IB-DK4040-CPD provides two different video interfaces and enables you to connect an HDMI� and VGA device simultaneously in mirror mode.

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case gross weight



10.7 kg


Master (outer) case height



28 cm


Master (outer) case length



46 cm


Master (outer) case width



33 cm


Products per master (outer) case



60 pc(s)


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Other features



Cable length



0.2 m


Package dimensions



Depth (package,cm)



2.5 cm


Gross Weight (Package, kg)



0.22 kg


Height (package,cm)



20 cm


Width (package,cm)



10 cm


Packaging content



Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), SD


Data transfer rate



5 Gbit/s


HD type



4K Ultra HD


Housing material



Aluminium, Plastic


Maximum analog resolution



1920 x 1200 Pixels


Maximum digital resolution



3840 x 2160 Pixels


Maximum refresh rate



60 Hz


Number of displays supported



2


Product colour



Anthracite, Black


UASP support



Yes


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


HDMI ports quantity



1


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



No


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


USB Type-C DisplayPort Alternate Mode



Yes


VGA (D-Sub) ports quantity



1


Power



Power connector



USB Type-C


Power source type



USB


Product dimensions



Net Weight (Product, kg)



0.17 kg


Product Depth



6 cm


Product Height



1.7 cm


Product Width



11.5 cm


Software



Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
