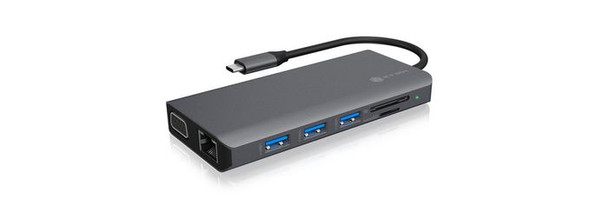

ICY BOX IB-DK4070-CPD Wired Usb 3.2 Gen 1 3.1 Gen IB-DK4070-CPD

Slim and elegant
Due to the low height, the IB-DK4070-CPD is very handy as well as flexible for many situations. The integrated USB Type-C� cable can�t get lost and you will always get a connection with the latest PCs, notebooks or mobile devices.

LAN port � faster & safer
Wireless devices are already useful and applicable in many situations, but there are better options when high data transfer rates are required. Wired connections are more secure than wireless connections, i.e. they offer a lower risk, especially if you don�t want to or cannot take full advantage of the security measures available via WLAN. Thus, an Ethernet interface is the best way to transfer files between devices with maximum transfer rate and security.

Always informed!
With two HDMI� and one VGA connection, the IB-DK4070-CPD provides up to three video interfaces of different resolutions, allowing simultaneous connection of HDMI� and VGA display devices in expansion mode. This is made possible by combining several current technologies such as DisplayLink� and DisplayPort� Alt Mode.

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case gross weight



11.2 kg


Master (outer) case height



28 cm


Master (outer) case length



44 cm


Master (outer) case width



33 cm


Products per master (outer) case



60 pc(s)


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



1000


Other features



Cable length



0.2 m


Package dimensions



Depth (package,cm)



2.5 cm


Gross Weight (Package, kg)



0.22 kg


Height (package,cm)



20 cm


Width (package,cm)



10 cm


Packaging content



Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



Yes


Compatible memory cards



MicroSDXC, SDXC


HD type



4K Ultra HD


Housing material



Aluminium, Plastic


LED indicators



Power


Maximum analog resolution



1920 x 1080 Pixels


Maximum digital resolution



3840 x 2160 Pixels


Maximum memory card size



2 TB


Maximum refresh rate



60 Hz


Product colour



Anthracite, Black


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


HDMI ports quantity



2


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



No


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


USB Type-C DisplayPort Alternate Mode



Yes


VGA (D-Sub) ports quantity



1


Power



Power source type



USB


Product dimensions



Net Weight (Product, kg)



0.17 kg


Product Depth



5.5 cm


Product Height



1.6 cm


Product Width



12 cm


Software



Mac operating systems supported



Y, Yes


Other operating systems supported



ChromeOS


Windows operating systems supported



Yes


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
