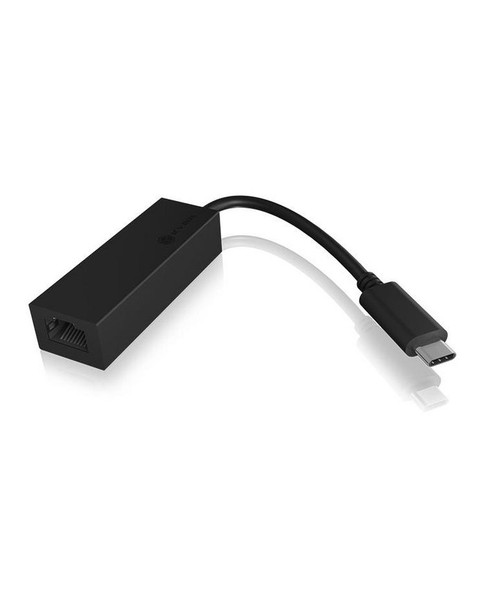

ICY BOX IB-LAN100-C3 Ethernet 1000 Mbit/S IB-LAN100-C3

The new standard
USB 3.0 Type-C� connectors have two decisive advantages over the conventional forms: They are smaller and therefore made for slim notebooks and mobile devices, and it is no longer necessary to insert the plug in a certain orientation. It fits in any way, you don�t even have to look at it.

Uncompromisingly fast
The convenience of using the adapter is also evident from the fact that there is no need to purchase an additional Gigabit network card or occupy a PCI or cardbus slot! Adhering to the USB 3.0 specification, this adapter provides true 10/100/1000 Mbps transfer rates without compromise.

No Ethernet connection available?
Then this adapter is exactly what you need: It is connected to the Type-C� interface of your PC, notebook or mobile device via a USB 3.0 Type-C� plug and connected to your LAN cable. A fast and stable internet connection is immediately available; you don�t need WLAN.

Design



Chipset



Realtek RTL8153


Component for



PC


Internal



No


Plug and Play



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



2.3 kg


Master (outer) case height



22 cm


Master (outer) case length



23 cm


Master (outer) case width



21.5 cm


Products per master (outer) case



40 pc(s)


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


LAN controller



Realtek RTL8153


Maximum data transfer rate



1000 Mbit/s


Wake-on-LAN ready



Yes


Other features



Cable length



0.085 m


Housing material



ABS


Package dimensions



Depth (package,cm)



2 cm


Gross Weight (Package, kg)



0.13 kg


Height (package,cm)



8.5 cm


Width (package,cm)



100 cm


Packaging content



Manual



Yes


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Host interface



USB Type-C


Interface



Ethernet


USB connector form factor



Straight


USB version



3.2 Gen 1 (3.1 Gen 1)


Power



USB powered



Yes


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



6 cm


Product Height



1.5 cm


Product Width



2.2 cm


System requirements



Mac operating systems supported



Y, Yes


Other operating systems supported



ChromeOS


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
