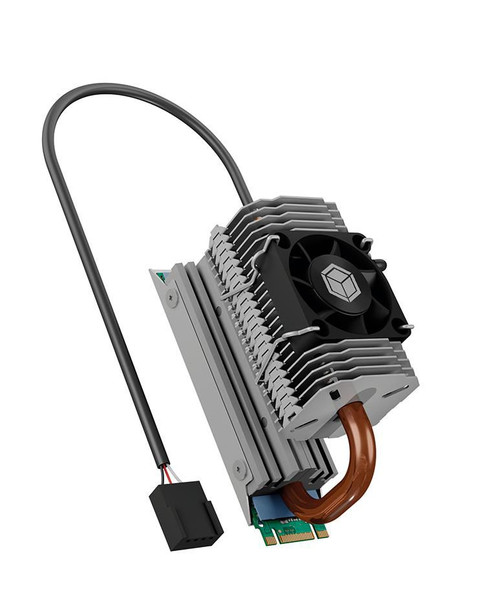

ICY BOX IB-M2HSF-705 Solid-State Drive IB-M2HSF-705

Powerful cooling performance
The swivelling ICY BOX� heatpipe cooler reduces the temperature of your M.2 SSD (form factor 2280) by up to 40%. Due to the excellent interaction of cooling fins and fan, a cooling capacity of 23 W TDP is achieved. Depending on SSD manufacturer, model and version, as well as load of the SSD.

Perfectly positioned
The possibility to swivel the ICY BOX� heatpipe cooler allows the airflow in the enclosure to be optimally directed. It can also be positioned flexibly, which creates additional space for graphics cards or PCIe expansion cards. This allows you to fit even more performance into small enclosures.

Silent fan
The 30 mm PVM fan has an output of 8500 rpm and a volume flow of approx. 4.9 m�/h. You can further optimise the fan settings for yourself via the BIOS. This makes it possible to achieve cooling that is perfectly matched to the system. The fan is pleasantly quiet even under high demands.

Design



Fan connector



4-pin


Material



Aluminium, Copper


Number of fans



1 fan(s)


Number of fins



22


Number of heat pipes



1


Product colour



Silver


Logistics data



Master (outer) case gross weight



7.6 kg


Master (outer) case height



42.5 cm


Master (outer) case length



44 cm


Master (outer) case width



22.5 cm


Products per master (outer) case



40 pc(s)


Package dimensions



Depth (package,cm)



20 cm


Gross Weight (Package, kg)



0.22 kg


Height (package,cm)



4 cm


Width (package,cm)



10 cm


Packaging content



Screws included



Yes


Thermal pad included



Yes


Performance



Airflow



4.87 m�/hr


Fan diameter



3 cm


Maximum airflow



2.87 cfm


Number of speeds



1


Operating temperature (T-T)



-20 - 180 �C


Quantity per pack



1 pc(s)


Rotational speed (max)



8500 RPM


Suitable location



Solid-state drive


Thermal conductivity



1.5 W/m�K


Type



Heatsink/Radiatior


Power



Rated current



0.09 A


Thermal Design Power (TDP)



23 Watt


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.17 kg


Product Depth



7.5 cm


Product Height



3 cm


Product Width



5 cm


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)


Weight & dimensions



Cable length



0.5 m


Fan dimensions (W x D x H)



30 x 30 x 7 mm


Fins thickness



0.5 mm


Heat pipes diameter



6 mm
