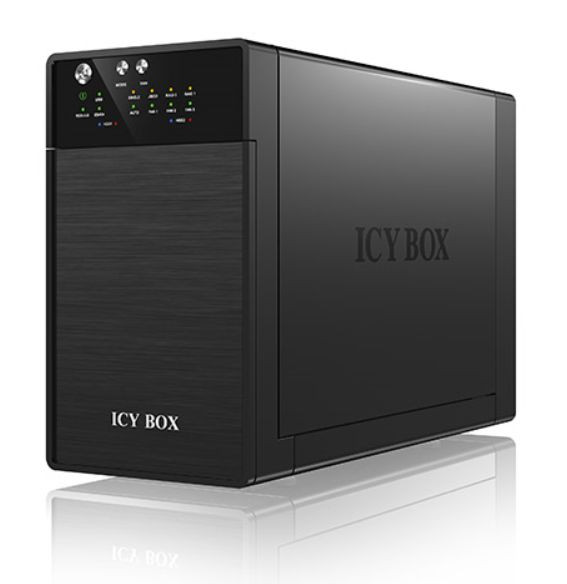

ICY BOX IB-RD3620SU3 Ext. RAID System. 2x SATA 3.5" IB-RD3620SU3

A good team
It does not matter if you want to connect to a PC or a Mac, all that is needed is just one cable, USb 3.0 or eSATA, in order to get this dual 3.5" HDD data juggler. The available RAID levels are RAID 0, 1 and JBOD.

A comfortable exchange
The HDDs can be toollessly built into the device and detached from it too. This is achieved by the support for HotSwap and Plug & Play. No additional driver installation is necessary.

Hear a pin drop
The IB-RD3620U3 is very quiet thanks to the passive heat conduction of the high quality aluminium enclosure. Additionally, a temperature controlled fan is included in the enclosure ni order to make sure the cool temperature is held at all times. The fan can be set into three RPM presets.

Design



Chassis type



Desktop


Fan diameter



6 cm


Housing material



Aluminium, Plastic


Internal



No


LED indicators



Y, Yes


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84717020


Package dimensions



Depth (package,cm)



16 cm


Gross Weight (Package, kg)



1.94 kg


Height (package,cm)



30 cm


Width (package,cm)



27 cm


Packaging content



Cables included



eSATA, USB


Performance



Device class



Home & Home Office


Ports & interfaces



eSATA ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity



1


USB connectivity



Yes


Power



AC input voltage



100-240 V


DC output voltage



12 V


Power consumption (max)



48 Watt


Product dimensions



Net Weight (Product, kg)



1.8399999999999999 kg


Product Depth



21.5 cm


Product Height



16.6 cm


Product Width



12.6 cm


Storage



Data transfer rate



6 Gbit/s


Hot-swap drive bays



Yes


Installed storage drive type



No


Maximum supported storage capacity



3 TB


Number of storage drives supported



2


RAID levels



0, 1, JBOD


Storage drive interface



Serial ATA, Serial ATA II, Serial ATA III


Storage drive size



3.5 "


Storage drive sizes supported



3.5


Storage drives installed



No


Supported storage drive interfaces



Serial ATA, Serial ATA II, Serial ATA III


Supported storage drive types



HDD


System requirements



Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Technical details



Harmonized System (HS) code



84717020


Vendor information



Brand Name


ICY BOX


Warranty



2 Year(s)
