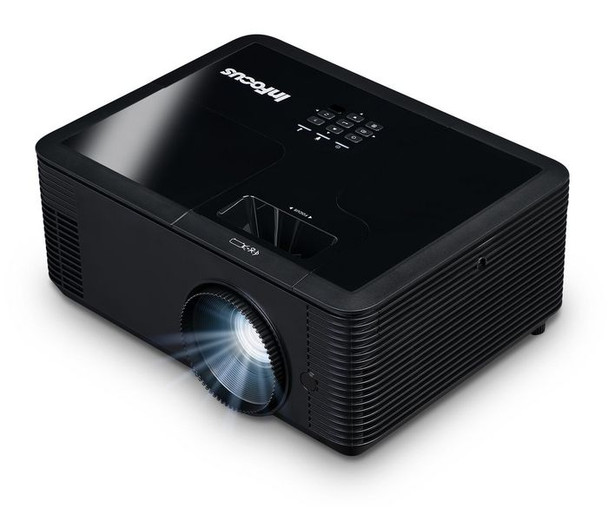

Infocus IN136 Wxga Data Projector Standard IN136

InFocus IN136 Projector

The InFocus IN136 WXGA projector combines stellar image performance, long-life lamp and low cost with the ability to create a more powerful and dynamic education experience. Simply insert your Google ChromeCast, Intel Computer Stick, Android solution, or other device into the projector�s TechStation internal HDMI 1.4 bay and turn your projector into an all-in-one classroom solution.

Customize your projector using TechStation

With an HDMI port and multiple ways to connect your devices, the TechStation superpowers your projector and enables more effective learning by working seamlessly with the tools you already use. After connecting your device, close up the TechStation�s lid to create a streamlined, all-in-one solution for streaming audio and video.

IN130 Series projectors work with:- Google ChromeCast Ultra
- Intel Computer Stick
- Asus Chromebit
- Amazon Fire TV Stick
- Android stick
- And more HDMI-supported devices to enable casting, streaming, and wireless

Easy to Install and Manage

Quickly and simply install and manage your projector over your school�s network with free ProjectorNet 4.1 software from InFocus, or choose to utilize Crestron Roomview or AMX Device Discovery.

Quietest Projector in its Class

Make sure students always hear the lessons, not the fans. With only 21dB in eco mode, IN136 projector was designed to be quieter, with Smooth Flow fan technology, a cooling-efficient enclosure, and silent bearings.

Save Energy with Value that Lasts

IN130 projectors are designed to fit your budget go the distance with ultra-long lamp life of up to 15,000 hours and no filters to clean or replace. Unlike other imaging technologies, the TI DLP� chip ensures no image decay over time so your projector lasts longer. Activate Dynamic Mode to dim the image when not in use, and save even more money over the life of the projector.

Over 1 Billion Colors

BrilliantColor� DLP imaging technology lets images shine with over 1 billion colors that ensure life-like color accuracy and eye-catching presentations. Get better, brighter images on whiteboards, blackboards, or beige walls, in any light.

Engage Audiences from Every Angle with 3D

Bring content to life with support for multiple forms of 3D -- including Blu-Ray, 3D broadcasting, videos games and PC connectivity. All your audience needs are 144Hz DLP Link 3D glasses (sold separately).

Design



Cable lock slot



Yes


Cable lock slot type



Kensington


Housing material



Plastic


LED indicators



Y, Yes


Market positioning



Home cinema


Placement



Desktop, Ceiling, Tripod


Product colour



Black


Product type



Standard throw projector


Display



Built-in display



No


Features



4K Ultra HD upscaling



No


Air filter



No


Certification



UL, c-UL, FCC, CE, CCC+CECP, KCC, NOM, PCT/CU/EAC, PSB, SABS, CB, Nemco/GS, KC


Composite sync



No


Electronic Programme Guide (EPG)



No


Eye protection



No


HID support



No


High Dynamic Range (HDR) supported



No


Hotel mode



No


Hybrid Broadcast Broadband TV (HbbTV)



No


Noise level



21 dB


Noise reduction



No


Number of OSD languages



27


On Screen Display (OSD)



Yes


On Screen Display (OSD) languages



Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese


Password protection



Yes


Projection modes



Ceiling, Front, Rear


Screen mirroring



No


Separate H/V sync



Yes


Sleep timer



Yes


Sync-on-green (SOG)



No


Teletext function



No


Trumotion technology



No


Lens system



Focus



Manual


Offset



112.4 %


Throw ratio



1.54 - 1.72:1


Light source



Lamp power



245 Watt


Lamp power (economic mode)



170 Watt


Lamp type



UHP


Light source type



Lamp


Service life of light source



5500 Hour


Service life of light source (economic mode)



10000 Hour


Multimedia



Audio formats supported



AAC, MP3, WAV, WMA


Built-in microphone



No


Built-in speaker(s)



Yes


Equalizer



No


Image formats supported



BMP, JPEG XR, JPG, PNG


Logical Channel Number (LCN)



No


Number of built-in speakers



1


RMS rated power



10 Watt


TV tuner integrated



No


Video formats supported



3GP, AVI, MOV, MP4, MPEG, MPG, RM, RMVB


Network



Bluetooth



No


Bluetooth Low Energy (BLE)



No


Ethernet LAN



No


Miracast



No


Smart TV



No


Web browser



No


Wi-Fi



No


Operational conditions



Operating altitude



0 - 3048 m


Operating temperature (T-T)



5 - 40 �C


Storage temperature (T-T)



-10 - 60 �C


Other features



RS-232 ports



1


Package dimensions



Depth (package,cm)



33.78 cm


Gross Weight (Package, kg)



4.16 kg


Height (package,cm)



19.56 cm


Width (package,cm)



39.88 cm


Packaging content



3D glasses included



No


AC adapter included



No


Batteries included



No


Cables included



AC, HDMI, IR


Carrying case



No


Manual



Yes


Mounting brackets included



No


Remote control included



Yes


Remote control type



IR


Tripod included



No


Ports & interfaces



AC (power) in



Yes


Audio (L/R) in



1


Audio (L/R) out



1


Audio Return Channel (ARC)



No


AUX in



No


Common interface Plus (CI+)



No


Composite video in



1


Consumer Electronics Control (CEC) support



No


DC-in jack



No


DVI port



No


HDBaseT port



No


HDMI connector type



Full-size


HDMI ports quantity



3


HDMI version



1.4a


Microphone in



No


Mobile High-Definition Link (MHL)



No


PC Audio in



Yes


PC Audio out



Yes


PC in (D-Sub)



Yes


Remote (IR) output



1


S/PDIF out port



No


Serial interface type



RS-232


USB 2.0 ports quantity



1


VGA (D-Sub) ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Auto power off



Yes


Power consumption (economy mode)



220 Watt


Power consumption (max)



330 Watt


Power consumption (network standby)



0.5 Watt


Power consumption (standby)



0.5 Watt


Power consumption (typical)



300 Watt


Power source



AC


Processor



Built-in processor



No


Product dimensions



Net Weight (Product, kg)



3.2 kg


Product Depth



23.62 cm


Product Height



12.45 cm


Product Width



31.24 cm


Projector



Contrast ratio (typical)



28500:1


Horizontal synchronization (max)



97.6 kHz


Horizontal synchronization (min)



31.5 kHz


Keystone correction, horizontal



-40 - 40 �


Matrix type



DMD


Native aspect ratio



16:10


Number of colours



1.073 billion colours


Projection distance



1 - 10 m


Projection technology



DLP


Projector brightness



4000 ANSI lumens


Projector brightness (economic mode)



3200 ANSI lumens


Projector native resolution



WXGA (1280x800)


Screen size compatibility



23 - 256 "


Supported aspect ratios



4:3, 16:10, 16:9


Uniformity



80 %


Vertical synchronization (max)



120 kHz


Vertical synchronization (min)



56 kHz


Supplier features



Assembly required



No


Batteries required



Yes


Battery type



AA


Invoice unit



Yes


Manual languages (ISO 639 format)



Multi


Orderable unit



Yes


Recommended gender



Any gender


Technical details



Sustainability compliance



Yes


Vendor information



Brand Name


Infocus


Warranty



1 Year(s)


Video



3D



Yes


Adjustable colour temperature



Yes


Analog signal format system



NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM


Full HD



No


Supported graphics resolutions



800 x 600 (SVGA), 854 x 480 (WVGA), 1024 x 600, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)


Supported video modes



480i, 480p, 576i, 720p, 1080i, 1080p
