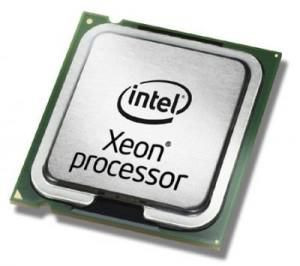

Intel AT80614005073AB-RFB Xeon E5620 QUAD/2.4GHZ/12M/5.8 AT80614005073AB-RFB

Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.

Features



Bandwidth



25600 MB/s


Commodity Classification Automated Tracking System (CCATS)



G077159


CPU configuration (max)



2


Embedded options available



Yes


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Harmonized System (HS) code



8542310001


Idle States



Yes


Images Type Map



divimg src="https://ark.intel.com/inc/images/diagrams/diagram-19.gif" title="Block Diagram" //div


Market segment



Server


Physical Address Extension (PAE)



40 bit


Supported instruction sets



SSE4.2


Thermal Monitoring Technologies



No


Graphics



On-board graphics card



No


Logistics data



Harmonized System (HS) code



8542310001


Memory



ECC



Yes


Maximum internal memory supported by processor



288 GB


Memory channels



Triple-channel


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



77.6 �C


Other features



Cache memory



12 MB


Maximum internal memory



294912 MB


Maximum internal memory



288 GB


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.750 - 1.350 V


Processor



Box



No


Bus type



QPI


Component for



Server/workstation


Cooler included



No


CPU multiplier (bus/core ratio)



18


Memory bandwidth supported by processor (max)



25.6 GB/s


Number of QPI links



2


Processor ARK ID



47925


Processor base frequency



2.4 GHz


Processor boost frequency



2.66 GHz


Processor cache



12 MB


Processor cache type



Smart Cache


Processor code



SLBV4


Processor codename



Westmere EP


Processor cores



4


Processor family



Intel� Xeon� 5000 Sequence


Processor frequency



2.4 GHz


Processor lithography



32 nm


Processor manufacturer



Intel


Processor model



E5620


Processor operating modes



64-bit


Processor series



Intel Xeon 5600 Series


Processor socket



LGA 1366 (Socket B)


Processor threads



8


Stepping



B1


System bus rate



5.86 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.75 - 1.35 V


Processor special features



Conflict-Free processor



No


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



Yes


Intel Enhanced Halt State



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Turbo Boost Technology



1.0


Product dimensions



Net Weight (Product, kg)



1 kg


Technical details



Born on date



Q1'10


Bus bandwidth



5.86


Bus speed



5.86 GT/s


Bus type units



GT/s


Last change



63903513


Launch date



Q1'10


Maximum memory



288 GB


Processor brand name



Intel Xeon


Processor cache



12288 KB


Processor core voltage



0.750-1.350 V


Product family



Intel Xeon Processor 5000 Sequence


Product name



Intel Xeon E5620 (12M Cache, 2.40 GHz, 5.86 GT/s Intel QPI)


Product type



Processor


Status



Discontinued


Supported memory types



DDR3-SDRAM


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



42.5mm x 45mm mm
