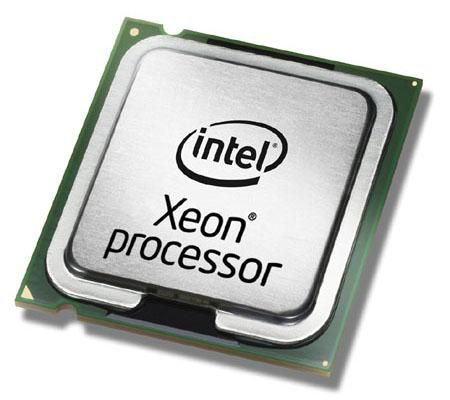

Intel AT80614005922AA-RFB Xeon X5672 AT80614005922AA-RFB

Intel� Turbo Boost Technology
Intel� Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don�t.

Intel� Hyper-Threading Technology
Intel� Hyper-Threading Technology (Intel� HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel� Virtualization Technology (VT-x)
Intel� Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel� Trusted Execution Technology
Intel� Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel� processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

AES New Instructions
Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption.

Intel� 64
Intel� 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.� Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep� Technology
Enhanced Intel SpeedStep� Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep� Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep� Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel� Demand Based Switching
Intel� Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep� Technology in the server marketplace.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Features



Commodity Classification Automated Tracking System (CCATS)



G077159


CPU configuration (max)



2


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Harmonized System (HS) code



8542310001


Idle States



Yes


Market segment



Server


Physical Address Extension (PAE)



Yes


Physical Address Extension (PAE)



40 bit


Supported instruction sets



SSE4.2


Thermal Monitoring Technologies



No


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



288 GB


Memory channels



Triple-channel


Memory clock speeds supported by processor



800, 1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



82.9 �C


Other features



Cache memory



12 MB


Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Maximum internal memory



294912 MB


Maximum internal memory



288 GB


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.750 - 1.350 V


Processor



Box



No


Bus type



QPI


Component for



Server/workstation


Cooler included



No


CPU multiplier (bus/core ratio)



24


Memory bandwidth supported by processor (max)



32 GB/s


Number of QPI links



2


Processor ARK ID



52579


Processor base frequency



3.2 GHz


Processor boost frequency



3.6 GHz


Processor cache



12 MB


Processor cache type



Smart Cache


Processor code



SLBYK


Processor codename



Westmere EP


Processor cores



4


Processor family



Intel� Xeon� 5000 Sequence


Processor frequency



3.2 GHz


Processor front side bus



1333 MHz


Processor lithography



32 nm


Processor manufacturer



Intel


Processor model



X5672


Processor operating modes



64-bit


Processor series



Intel Xeon 5600 Series


Processor socket



LGA 1366 (Socket B)


Processor threads



8


Stepping



B1


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.75 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



Yes


Intel Enhanced Halt State



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Turbo Boost Technology



1.0


Product dimensions



Net Weight (Product, kg)



1 kg


Technical details



Born on date



Q1'11


Bus bandwidth



6.4


Bus speed



6.4 GT/s


Bus type units



GT/s


Last change



63903513


Launch date



Q1'11


Maximum memory



288 GB


Processor brand name



Intel Xeon


Processor cache



12288 KB


Processor core voltage



0.750-1.350 V


Product family



Intel Xeon Processor 5000 Sequence


Product name



Intel Xeon X5672 (12M Cache, 3.20 GHz, 6.40 GT/s Intel QPI)


Product type



Processor


Status



Discontinued


Supported memory types



DDR3-SDRAM


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



42.5mm x 45mm mm
