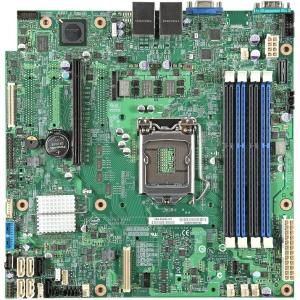

Intel BBS1200V3RPS Motherboard Intel� C222 Lga BBS1200V3RPS

An entry-level one socket board with Intel� C222 chipset, supporting one Intel� Xeon� Processor E3-1200 family, 4 UDIMMs at up to 1600MHz and dual integrated Intel� Ethernet Controller.

Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

AES New Instructions
Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption.

Expansion slots



PCI Express slots version



3.0


PCI Express x1 (Gen 2.x) slots



1


PCI Express x4 (Gen 2.x) slots



1


Features



Component for



Server


Embedded USB (eUSB) SSD option



Yes


Market segment



Server


Motherboard chipset



Intel� C222


Motherboard form factor



micro ATX


Physical Address Extension (PAE)



40 bit


Rack-Friendly board



Yes


Graphics



Discrete graphics support



Yes


On-board graphics card



Yes


Parallel processing technology support



Not supported


Internal I/O



Number of SATA connectors



6


Total number of SATA connectors



6


Logistics data



Harmonized System (HS) code



8473301180


Memory



ECC



Yes


Maximum internal memory



32 GB


Memory bandwidth (max)



25.6 GB/s


Memory channels



Dual-channel


Supported memory clock speeds



1333, 1600


Supported memory types



DDR3L-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



No


Other features



Chassis type



Tower


Commodity Classification Automated Tracking System (CCATS)



G145323


CPU configuration (max)



1


Discrete graphics card model



Supported


Embedded options available



No


Export Control Classification Number (ECCN)



5A992C


Graphics output



VGA


Intel Node Manager



Yes


Maximum UDIMM memory



32 GB


Motherboard ARK ID



71385


Number of DIMM slots



4


Number of processors supported



1


Packaging content



(1) Intel Server Board S1200V3RPS with (4) SATA Cables (1) I/O Shield (1) Intel Server Deployment & Management DVD (1) Attention document and (1) Quick Start User�s Guide.


PCI Express CEM revision



3.0


PCI Express slots quantity



16


PCI Express x8 (Gen 2.x) slots



1


PCI Express x8 (Gen 3.x) slots



1


Thermal Design Power (TDP)



95 Watt


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


User guide



Yes


Processor



Compatible processor series



Intel� Xeon� E3 Family


ECC supported by processor



Yes


Intel Xeon series



E3-1200


Lithography



22 nm


Maximum internal memory supported by processor



32 GB


Maximum number of PCI Express lanes



16


Memory bandwidth supported by processor (max)



25.6 GB/s


Processor manufacturer



Intel


Processor number of cores supported



2, 4


Processor socket



LGA 1150 (Socket H3)


Processor thermal power (max)



95 Watt


Product codename



Rainbow Pass


Product family



Single-socket server board


Product series



Intel S1200RP


System bus rate



5 GT/s


Processor special features



Connector for Intel I/O Expansion Module



1


Integrated BMC with IPMI



Yes


Integrated systems available



Yes


Intel Advanced Management Technology



Yes


Intel Build Assurance Technology



No


Intel Clear Video Technology



No


Intel Dual Display Capable Technology



No


Intel Efficient Power Technology



No


Intel Fast Memory Access



Yes


Intel Flex Memory Access



No


Intel I/O Acceleration Technology



Yes


Intel Intelligent Power Node Manager



Yes


Intel Quick Resume Technology



No


Intel Quiet System Technology (QST)



No


Intel Quiet Thermal Technology



No


Intel Rapid Storage Technology



No


Intel Rapid Storage Technology enterprise



Yes


Intel Remote Management Module Support



N


Intel Server Customization Technology



No


Intel Server Management Software



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Anti-Theft Technology (Intel� AT)



No


Intel� Clear Video HD Technology (Intel� CVT HD)



No


Intel� High Definition Audio (Intel� HD Audio)



No


Intel� Matrix Storage Technology (Intel� MST)



No


Intel� Virtualization Technology (Intel� VT)



VT-d


Intelligent Platform Management Interface (IPMI) support



Yes


Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



1.2


Product dimensions



Net Weight (Product, kg)



1 kg


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



2


Serial ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


VGA (D-Sub) ports quantity



1


Storage controllers



RAID levels



0, 1, 5, 10


Supported storage drive interfaces



SATA


Technical details



Additional information URL



http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s1200v3rp.html


Born on date



Q2'13


End of life date announce



Sunday, October 30, 2016


Expected discontinuance date



Q4'16


FireWire support



No


Form factor



uATX


Last change



63903513


Last order date



Sunday, April 30, 2017


Last receipt attributes date



Thursday, August 31, 2017


Launch date



Q2'13


Maximum memory



32 GB


Product name



Intel Server Board S1200V3RPS


Product type



Server/Workstation Board


Status



Discontinued


Supported RAID configuration



Software RAID RST (0,1,10,5) and ESRT2 (0,1,10)


USB ports quantity



4


USB version



3.2 Gen 1 (3.1 Gen 1)


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
