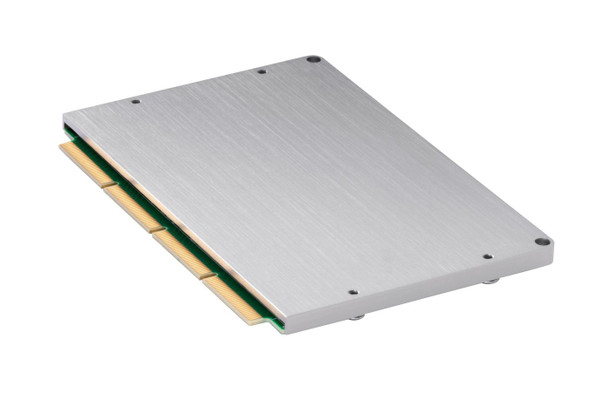

Intel BKCM11EBI58W Nuc 11 Cm11Ebi58W Intel� BKCM11EBI58W

Intel� Trusted Execution Technology
Intel� Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel� processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel� Virtualization Technology for Directed I/O (VT-d)
Intel� Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium� processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel� Virtualization Technology (VT-x)
Intel� Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel� AES New Instructions
Intel� AES New Instructions (Intel� AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel� ME Firmware Version
Intel� Management Engine Firmware (Intel� ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel� Turbo Boost Technology and, if present, Intel� Turbo Boost Max Technology 3.0 and Intel� Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Intel vPro� Platform Eligibility
The Intel vPro� platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.


Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel� Platform Trust Technology (Intel� PTT)
Intel� Platform Trust Technology (Intel� PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows� 10. Intel� PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Graphics



Discrete graphics card



No


Number of displays supported



4


Number of displays supported (on-board graphics)



4


On-board graphics card



No


On-board graphics card family



Intel Iris Xe Graphics


On-board graphics card model



Intel Iris Xe Graphics


Logistics data



Harmonized System (HS) code



84713000


Memory



ECC



No


Internal memory



8 GB


Internal memory type



LPDDR4x


Memory channels



Dual-channel


Memory clock speed



4266 MHz


Supported memory types



LPDDR4x-SDRAM


Network



Bluetooth



Yes


Cabling technology



10/100/1000Base-T(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.13 kg


Performance



ARK ID



212015


Commodity Classification Automated Tracking System (CCATS)



G157815L2


Export Control Classification Number (ECCN)



5A992C


Status



Launched


Ports & interfaces



DisplayPorts quantity



1


Thunderbolt 4 ports quantity



1


Processor



Configurable TDP-down



12 Watt


Configurable TDP-down frequency



0.9 GHz


Configurable TDP-up



28 Watt


Configurable TDP-up frequency



2.4 GHz


Memory types supported by processor



LPDDR4x-SDRAM


Processor boost frequency



4.2 GHz


Processor cache



8 MB


Processor cache type



Smart Cache


Processor cores



4


Processor family



Intel� Core� i5


Processor generation



11th gen Intel� Core� i5


Processor lithography



10 nm


Processor manufacturer



Intel


Processor model



i5-1135G7


Processor threads



8


System bus rate



4 GT/s


Processor special features



Embedded options available



No


Idle States



Yes


Intel ME Firmware Version



15


Intel Software Guard Extensions (Intel SGX)



No


Intel Stable Image Platform Program (SIPP)



No


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Platform Trust Technology (Intel� PTT)



Yes


Intel� vPro� Platform Eligibility



No


Product dimensions



Net Weight (Product, kg)



0.87 kg


Product Depth



0.14 cm


Product Height



0.04 cm


Product Width



0.13 cm


Software



Compatible operating systems



Windows 10, 64-bit*|Windows 10 IoT Enterprise*|Linux*


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
