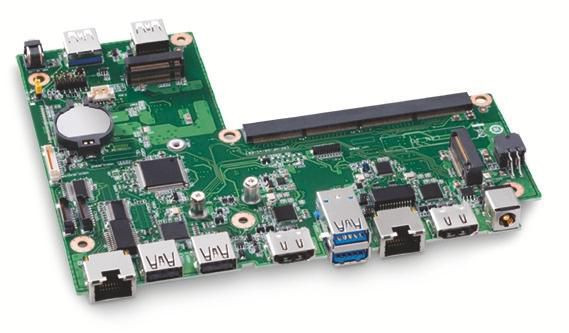

Intel BKCMB1ABB Nuc Rugged Board Element BKCMB1ABB

The modular Intel® NUC Rugged Board designed for the Intel® NUC Rugged Chassis Element or for use in a third-party chassis and/or embedded solutions. The Dual LAN board – designed for IoT deployments – offers design flexibility.

Features



Audio output channels



8 channels


Component for



Mini PC


DC input voltage



12~24 V


Form factor



U-series Element Carrier Board


Motherboard form factor



NUC


Windows operating systems supported



Windows 10, Windows 11


Graphics



Number of displays supported



3


Parallel processing technology support



Not supported


Internal I/O



USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Logistics data



Harmonized System (HS) code



8473301180


Memory



SSD form factor



M.2


Other features



Additional headers



Front panel (PWR_SW, PWR_LED, RST, HDD_Act, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector


Commodity Classification Automated Tracking System (CCATS)



NA


Embedded DisplayPorts (eDP) quantity



1


Export Control Classification Number (ECCN)



EAR99


Graphics output



Dual HDMI, eDP


Motherboard ARK ID



205878


Number of storage drives supported



2


Serial port via internal header



Yes


Status



Launched


Thermal Design Power (TDP)



15 Watt


Package dimensions



Gross Weight (Package, kg)



0.08 kg


Ports & interfaces



HDMI ports quantity



2


Serial port via internal header



Yes


Serial ports quantity



2


USB ports quantity



4


Power



DC input voltage



12~24 V


Processor



Processor manufacturer



Intel


Thermal Design Power (TDP)



15 Watt


Product dimensions



Net Weight (Product, kg)



0.06 kg


Product Depth



13.64 cm


Product Width



17 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



2


HDMI ports quantity



2


Serial ports quantity



2


USB 2.0 ports quantity



3


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



3


Storage controllers



Number of storage drives supported



2


SSD form factor



M.2


Supported storage drive interfaces



M.2


Supported storage drive types



SSD


Technical details



Form factor



U-series Element Carrier Board


Launch date



Q4'19


M.2 card slot (storage)



2242/2280 (M-key)


Product type



Desktop Board


Status



Launched


USB ports quantity



4


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
