Intel

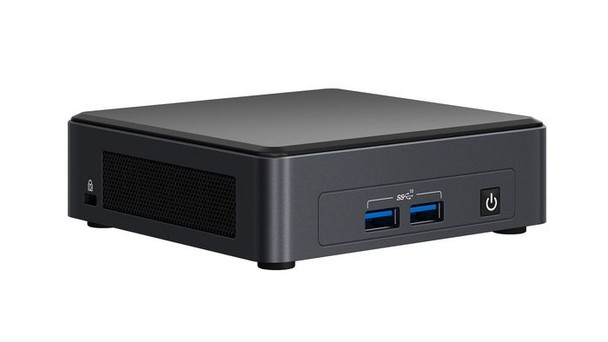

Intel BNUC11TNKI70002 99A8AF Nuc 11 Pro Ucff Black BNUC11TNKI70002 99A8AF
- UPC:
- 0000000000000
- MPN:
- BNUC11TNKI70002 99A8AF
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Intel� Virtualization Technology for Directed I/O (VT-d)
Intel� Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium� processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel� ME Firmware Version
Intel� Management Engine Firmware (Intel� ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.
Intel� Virtualization Technology (VT-x)
Intel� Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel� Platform Trust Technology (Intel� PTT)
Intel� Platform Trust Technology (Intel� PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows� 10. Intel� PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Audio
Built-in speaker(s)
No
Design
ARK ID
205599
Chassis type
UCFF
On/off switch
Yes
Product colour
Black
Product type
Mini PC barebone
Status
Launched
Expansion slots
PCI Express slots version
4.0
Graphics
Discrete graphics card model
Not available
Graphics card family
Intel
Number of displays supported
4
On-board graphics card
No
On-board graphics card model
Intel Iris Xe Graphics
Logistics data
Harmonized System (HS) code
84713000
Memory
ECC
No
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
SO-DIMM
Number of DIMM slots
2
Number of memory slots
2
Supported memory clock speeds
3200
Supported memory types
DDR4-SDRAM
Network
Bluetooth
Yes
Ethernet LAN
Yes
LAN controller
Intel I225-LM
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax)
WLAN controller model
Intel Wi-Fi 6 AX201
Other features
Additional headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
DC input voltage
12 - 20 V
Launch date
Q1'21
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Performance
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatible operating systems
Windows 10 IoT Enterprise*|Linux*
Export Control Classification Number (ECCN)
5A992C
Linux operating systems supported
RedHat EL Linux, Ubuntu 20.04 LTS
Motherboard form factor
UCFF
Windows operating systems supported
Windows 10 x64, Windows 10 IoT Enterprise
Ports & interfaces
DC-in jack
Yes
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
2
Internal USB 2.0 ports quantity
2
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity
1
M.2 card slot (storage)
2280 NVMe (M); 2242 SATA (B)
M.2 card slot (wireless)
2230 (E-key) (E)
Serial port via internal header
Yes
Thunderbolt 3 ports quantity
1
Thunderbolt ports quantity
2
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB ports quantity
4
Power
AC adapter output voltage
12 - 24 V
Number of power supply units
1
Power supply
28 Watt
Power supply type
External AC adapter
Processor
Built-in processor
Yes
CPU configuration (max)
1
Processor boost frequency
4.7 GHz
Processor cache
12 MB
Processor cores
4
Processor family
Intel� Core� i7
Processor generation
11th gen Intel� Core� i7
Processor lithography
10 nm
Processor manufacturer
Intel
Processor model
i7-1165G7
Processor threads
8
Thermal Design Power (TDP)
28 Watt
Processor special features
Embedded options available
No
Idle States
Yes
Intel ME Firmware Version
15
Intel Stable Image Platform Program (SIPP)
No
Intel Trusted Execution Technology
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel� AES New Instructions (Intel� AES-NI)
Yes
Intel� Optane� Memory Ready
No
Intel� Platform Trust Technology (Intel� PTT)
Yes
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
11.2 cm
Product Height
3.7 cm
Product Width
11.7 cm
Storage
Number of storage drives supported
2
SSD form factor
M.2
Storage drive interface
M.2
Storage drive sizes supported
M.2
Supported storage drive types
SSD
Vendor information
Brand Name
Intel
Warranty
1 Year(s)
