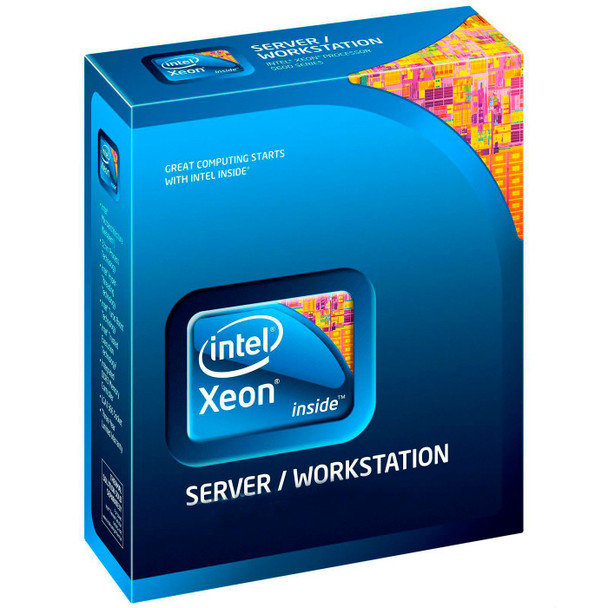

Intel BX80614X5650-RFB XEON 2.66GHZ 6C 12MB PROCESSOR BX80614X5650-RFB

Maximize Performance. Minimize Power. Automatically.
As data centers reach the upper limits of their power and cooling capacity, efficiency has become the focus of extending the life of existing data centers and designing new ones. As part of these efforts, IT needs to refresh existing infrastructure with standard enterprise servers that deliver more performance and scalability, more efficiently. The Intel� Xeon� processor 5600 series automatically regulates power consumption and intelligently adjusts server performance according to your application needs, maximizing both energy efficiency and performance. The secret to this compelling combination is Intel�s new 32nm Nehalem microarchitecture. Featuring Intel� Intelligent Power Technology that automatically shifts the CPU and memory into the lowest available power state, while delivering the performance you need, the Intel Xeon processor 5600 series with Intel Microarchitecture Nehalem delivers the same performance as previous-generation servers but uses up to 30 percent less power. And you can achieve up to a 95 percent reduction in energy costs when consolidating your single-core infrastructure with a new infrastructure built on Intel Xeon processor 5600.
This groundbreaking intelligent server technology features:- Intel�s new 32nm Microarchitecture Nehalem built with second-generation high-k and metal gate transistor technology.
- Intelligent Performance that automatically optimizes performance to fit business and application requirements and delivers up to 40 percent more performance per watt than Intel� Xeon� processor 5500 series.
- Automated Energy Efficiency that scales energy usage to the workload to achieve optimal performance/watt and with new 40 Watt options and lower power DDR3 memory, you can lower your energy costs even further.
- Flexible virtualization that offers best-in-class performance and manageability in virtualized environments to improve IT infrastructure and enable up to 15:1 consolidation over two socket, single-core servers.

Features



Commodity Classification Automated Tracking System (CCATS)



G077159


CPU configuration (max)



2


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Harmonized System (HS) code



8542310001


Idle States



Yes


Market segment



Server


Physical Address Extension (PAE)



40 bit


Supported instruction sets



SSE4.2


Thermal Monitoring Technologies



No


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



288 GB


Memory channels



Triple-channel


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Maximum operating temperature



81.3 �C


Tcase



81.3 �C


Other features



Maximum internal memory



294912 MB


Maximum internal memory



288 GB


Package dimensions



Depth (package,cm)



14 cm


Gross Weight (Package, kg)



1.2 kg


Height (package,cm)



11.7 cm


Width (package,cm)



4.4 cm


Power



Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.800 - 1.300 V


Processor



Box



Yes


Bus type



QPI


Component for



Server/workstation


Cooler included



Yes


CPU multiplier (bus/core ratio)



20


L3 cache speed



2.66 GHz


Memory bandwidth supported by processor (max)



32 GB/s


Number of QPI links



2


Processor ARK ID



47922


Processor base frequency



2.66 GHz


Processor boost frequency



3.06 GHz


Processor cache



12 MB


Processor cache type



Smart Cache


Processor code



SLBV3


Processor cores



6


Processor family



Intel� Xeon� 5000 Sequence


Processor frequency



2.66 GHz


Processor lithography



32 nm


Processor manufacturer



Intel


Processor model



X5650


Processor operating modes



64-bit


Processor series



Intel Xeon 5600 Series


Processor socket



LGA 1366 (Socket B)


Processor threads



12


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.75 - 1.35 V


Processor special features



Conflict-Free processor



No


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



Yes


Intel Enhanced Halt State



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Turbo Boost Technology



1.0


Product dimensions



Net Weight (Product, kg)



1.0999999999999999 kg


Technical details



Bus bandwidth



6.4


Bus speed



6.4 GT/s


Bus type units



GT/s


Last change



63903513


Launch date



Q1'10


Maximum memory



288 GB


Processor brand name



Intel Xeon


Processor cache



12288 KB


Product family



Intel Xeon Processor 5000 Sequence


Product type



Processor


Status



Discontinued


Supported memory types



DDR3-SDRAM


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



42.5mm x 45mm mm
