Intel
Intel BX8071513500 Core i5-13500 processor 24 MB BX8071513500
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- BX8071513500
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Intel� Gaussian & Neural Accelerator
Intel� Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel� GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.
Intel� Deep Learning Boost (Intel� DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.
Intel� Speed Shift Technology
Intel� Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
Intel� Turbo Boost Technology
Intel� Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don�t.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Features
Commodity Classification Automated Tracking System (CCATS)
740.17B1
CPU configuration (max)
1
Direct Media Interface (DMI) Revision
4.0
Embedded options available
Yes
Execute Disable Bit
Yes
Export Control Classification Number (ECCN)
5A992C
Idle States
Yes
Market segment
Desktop
Maximum number of PCI Express lanes
20
PCI Express configurations
1x16+1x4, 2x8+1x4
PCI Express slots version
5.0, 4.0
Scalability
1S
Supported instruction sets
SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies
Yes
Use conditions
PC/Client/Tablet, Workstation
Graphics
Discrete graphics card
No
Discrete graphics card model
Not available
Multi-Format Codec Engines
2
Number of displays supported (on-board graphics)
4
Number of execution units
32
On-board graphics card
Yes
On-board graphics card base frequency
300 MHz
On-board graphics card DirectX version
12.0
On-board graphics card dynamic frequency (max)
1550 MHz
On-board graphics card maximum resolution (DisplayPort)
7680 x 4320 Pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
5120 x 3200 Pixels
On-board graphics card maximum resolution (HDMI)
4096 x 2160 Pixels
On-board graphics card model
Intel UHD Graphics 770
On-board graphics card OpenGL version
4.5
On-board graphics card outputs supported
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
120 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)
60 Hz
Logistics data
Harmonized System (HS) code
8542310001
Memory
ECC
Yes
Maximum internal memory supported by processor
192 GB
Memory bandwidth (max)
76.8 GB/s
Memory channels
Dual-channel
Memory types supported by processor
DDR4-SDRAM, DDR5-SDRAM
Operational conditions
Tjunction
100 �C
Other features
Graphics output
eDP 1.4b, DP 1.4a, HDMI 2.1
L2 cache
11776 KB
Maximum internal memory
192 GB
Package dimensions
Gross Weight (Package, kg)
0.21000000000000002 kg
Processor
Box
Yes
Bus type
DMI4
Efficient cores
8
Efficient-core base frequency
1.8 GHz
Efficient-core boost frequency
3.5 GHz
Maximum number of DMI lanes
8
Maximum turbo power
154 Watt
Memory bandwidth supported by processor (max)
76.8 GB/s
Performance cores
6
Performance-core base frequency
2.5 GHz
Performance-core boost frequency
4.8 GHz
Processor ARK ID
230580
Processor base power
65 Watt
Processor boost frequency
4.8 GHz
Processor cache
24 MB
Processor cache type
Smart Cache
Processor codename
Raptor Lake
Processor cores
14
Processor family
Intel� Core� i5
Processor generation
13th gen Intel� Core� i5
Processor manufacturer
Intel
Processor model
i5-13500
Processor operating modes
64-bit
Processor socket
LGA 1700
Processor threads
20
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel 64
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel Trusted Execution Technology
Yes
Intel Turbo Boost Max Technology 3.0
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro� Enterprise Platform Eligibility
Yes
Intel vPro� Essentials Platform Eligibility
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel� Active Management Technology (Intel� AMT)
Yes
Intel� AES New Instructions (Intel� AES-NI)
Yes
Intel� Boot Guard
Yes
Intel� Clear Video HD Technology (Intel� CVT HD)
Yes
Intel� Control-flow Enforcement Technology (CET)
Yes
Intel� Deep Learning Boost (Intel� DL Boost)
Yes
Intel� Gaussian & Neural Accelerator (Intel� GNA) 3.0
Yes
Intel� Hardware Shield Eligibility
Yes
Intel� Hyper Threading Technology (Intel� HT Technology)
Yes
Intel� One-Click Recovery
Yes
Intel� OS Guard
Yes
Intel� Quick Sync Video Technology
Yes
Intel� Remote Platform Erase (RPE)
Yes
Intel� Secure Key
Yes
Intel� Speed Shift Technology
Yes
Intel� Standard Manageability (ISM)
Yes
Intel� Thread Director
Yes
Intel� Threat Detection Technology (TDT)
Yes
Intel� Total Memory Encryption - Multi Key
Yes
Intel� Turbo Boost Technology
2.0
Intel� Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel� Volume Management Device (VMD)
Yes
Intel� vPro� Platform Eligibility
Yes
Product dimensions
Net Weight (Product, kg)
0.2 kg
Technical details
Launch date
Q1'23
OpenCL version
3.0
Status
Launched
Target market
Gaming
Vendor information
Brand Name
Intel
Warranty
1 Year(s)
Weight & dimensions
Processor package size
45 x 37.5 mm
View AllClose
Intel� Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel� GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.
Intel� Deep Learning Boost (Intel� DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.
Intel� Speed Shift Technology
Intel� Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
Intel� Turbo Boost Technology
Intel� Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don�t.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Features
Commodity Classification Automated Tracking System (CCATS)
740.17B1
CPU configuration (max)
1
Direct Media Interface (DMI) Revision
4.0
Embedded options available
Yes
Execute Disable Bit
Yes
Export Control Classification Number (ECCN)
5A992C
Idle States
Yes
Market segment
Desktop
Maximum number of PCI Express lanes
20
PCI Express configurations
1x16+1x4, 2x8+1x4
PCI Express slots version
5.0, 4.0
Scalability
1S
Supported instruction sets
SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies
Yes
Use conditions
PC/Client/Tablet, Workstation
Graphics
Discrete graphics card
No
Discrete graphics card model
Not available
Multi-Format Codec Engines
2
Number of displays supported (on-board graphics)
4
Number of execution units
32
On-board graphics card
Yes
On-board graphics card base frequency
300 MHz
On-board graphics card DirectX version
12.0
On-board graphics card dynamic frequency (max)
1550 MHz
On-board graphics card maximum resolution (DisplayPort)
7680 x 4320 Pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
5120 x 3200 Pixels
On-board graphics card maximum resolution (HDMI)
4096 x 2160 Pixels
On-board graphics card model
Intel UHD Graphics 770
On-board graphics card OpenGL version
4.5
On-board graphics card outputs supported
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
120 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)
60 Hz
Logistics data
Harmonized System (HS) code
8542310001
Memory
ECC
Yes
Maximum internal memory supported by processor
192 GB
Memory bandwidth (max)
76.8 GB/s
Memory channels
Dual-channel
Memory types supported by processor
DDR4-SDRAM, DDR5-SDRAM
Operational conditions
Tjunction
100 �C
Other features
Graphics output
eDP 1.4b, DP 1.4a, HDMI 2.1
L2 cache
11776 KB
Maximum internal memory
192 GB
Package dimensions
Gross Weight (Package, kg)
0.21000000000000002 kg
Processor
Box
Yes
Bus type
DMI4
Efficient cores
8
Efficient-core base frequency
1.8 GHz
Efficient-core boost frequency
3.5 GHz
Maximum number of DMI lanes
8
Maximum turbo power
154 Watt
Memory bandwidth supported by processor (max)
76.8 GB/s
Performance cores
6
Performance-core base frequency
2.5 GHz
Performance-core boost frequency
4.8 GHz
Processor ARK ID
230580
Processor base power
65 Watt
Processor boost frequency
4.8 GHz
Processor cache
24 MB
Processor cache type
Smart Cache
Processor codename
Raptor Lake
Processor cores
14
Processor family
Intel� Core� i5
Processor generation
13th gen Intel� Core� i5
Processor manufacturer
Intel
Processor model
i5-13500
Processor operating modes
64-bit
Processor socket
LGA 1700
Processor threads
20
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel 64
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel Trusted Execution Technology
Yes
Intel Turbo Boost Max Technology 3.0
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro� Enterprise Platform Eligibility
Yes
Intel vPro� Essentials Platform Eligibility
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel� Active Management Technology (Intel� AMT)
Yes
Intel� AES New Instructions (Intel� AES-NI)
Yes
Intel� Boot Guard
Yes
Intel� Clear Video HD Technology (Intel� CVT HD)
Yes
Intel� Control-flow Enforcement Technology (CET)
Yes
Intel� Deep Learning Boost (Intel� DL Boost)
Yes
Intel� Gaussian & Neural Accelerator (Intel� GNA) 3.0
Yes
Intel� Hardware Shield Eligibility
Yes
Intel� Hyper Threading Technology (Intel� HT Technology)
Yes
Intel� One-Click Recovery
Yes
Intel� OS Guard
Yes
Intel� Quick Sync Video Technology
Yes
Intel� Remote Platform Erase (RPE)
Yes
Intel� Secure Key
Yes
Intel� Speed Shift Technology
Yes
Intel� Standard Manageability (ISM)
Yes
Intel� Thread Director
Yes
Intel� Threat Detection Technology (TDT)
Yes
Intel� Total Memory Encryption - Multi Key
Yes
Intel� Turbo Boost Technology
2.0
Intel� Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel� Volume Management Device (VMD)
Yes
Intel� vPro� Platform Eligibility
Yes
Product dimensions
Net Weight (Product, kg)
0.2 kg
Technical details
Launch date
Q1'23
OpenCL version
3.0
Status
Launched
Target market
Gaming
Vendor information
Brand Name
Intel
Warranty
1 Year(s)
Weight & dimensions
Processor package size
45 x 37.5 mm
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
Related Products
Intel CM8071505093101 Core I5-13500 Processor 24 Mb CM8071505093101
Intel
£279.00
Intel� Gaussian & Neural Accelerator
Intel� Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel� GNA is...
Intel CM8071505093104 Core I5-14500 Processor 24 Mb CM8071505093104
Intel
£288.75
Core I5-14500 Processor 24 Mb Smart Cache
Intel CM8071504821018 Core I5-14600 Processor 24 Mb CM8071504821018
Intel
£337.30
Core I5-14600 Processor 24 Mb Smart Cache

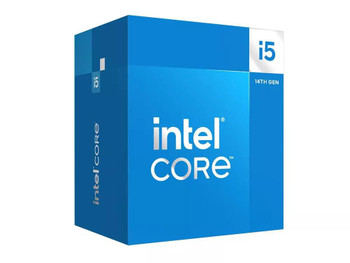

Intel BX8071514500 Core I5-14500 Processor 24 Mb BX8071514500
Intel
£319.26
Core I5-14500 Processor 24 Mb Smart Cache Box
Intel CM8071504821006 Core I5-13600Kf Processor 24 CM8071504821006
Intel
£258.03
Intel� Gaussian & Neural Accelerator
Intel� Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel� GNA is...
