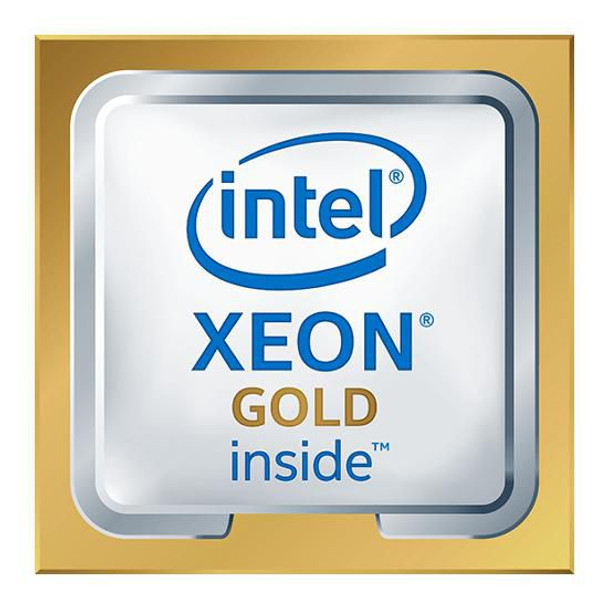

Intel CD8067303592600-RFB XEON Gold 6128 CD8067303592600-RFB

Intel� AES New Instructions (Intel� AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel� Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel� processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Enhanced Intel SpeedStep� Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep� Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep� Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Features



Commodity Classification Automated Tracking System (CCATS)



G077159


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Market segment



Server


Maximum number of PCI Express lanes



48


PCI Express CEM revision



3.0


PCI Express slots version



3.0


Scalability



S4S


Supported instruction sets



SSE4.2, AVX, AVX 2.0, AVX-512


Graphics



On-board graphics card



No


Logistics data



Harmonized System (HS) code



8542310001


Memory



ECC



Yes


Maximum internal memory supported by processor



768 GB


Memory channels



Hexa-channel


Memory clock speeds supported by processor



2666


Memory types supported by processor



DDR4-SDRAM


Operational conditions



Tcase



74 �C


Other features



Maximum internal memory



786432 MB


Maximum internal memory



768 GB


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Processor



Box



No


Component for



Server/workstation


Cooler included



No


Processor ARK ID



120482


Processor base frequency



3.4 GHz


Processor boost frequency



3.7 GHz


Processor cache



19.25 MB


Processor cache type



L3


Processor code



SR3J4


Processor codename



Skylake


Processor cores



6


Processor family



Intel� Xeon� Gold


Processor generation



1st Generation Intel� Xeon� Scalable


Processor lithography



14 nm


Processor manufacturer



Intel


Processor model



6128


Processor operating modes



64-bit


Processor socket



LGA 3647 (Socket P)


Processor threads



12


Stepping



H0


Thermal Design Power (TDP)



115 Watt


Processor special features



AVX-512 Fused Multiply-Add (FMA) units



2


Conflict-Free processor



Yes


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Trusted Execution Technology



Yes


Intel TSX-NI



Yes


Intel TSX-NI version



1.00


Intel Turbo Boost Max Technology 3.0



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Optane� Memory Ready



No


Intel� Speed Shift Technology



Yes


Intel� Transactional Synchronization Extensions



Yes


Intel� Turbo Boost Technology



2.0


Intel� Volume Management Device (VMD)



Yes


Intel� vPro� Platform Eligibility



Yes


Product dimensions



Net Weight (Product, kg)



0.5 kg


Technical details



Intel� Run Sure Technology version



1.00


Intel� Speed Shift Technology version



1.00


Intel� Volume Management Device (VMD) version



1.00


Last change



63903513


Launch date



Q3'17


Maximum memory



768 GB


Memory speed (max)



2666 MHz


Mode-based Execute Control (MBE) version



1.00


Number of UPI links



3


Processor brand name



Intel Xeon Gold Intel Xeon Gold Processor


Processor cache



19712 KB


Product family



Intel Xeon Processors


Product type



Processor


Status



Launched


Supported memory types



DDR4-SDRAM


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



76mm x 56.5mm mm
