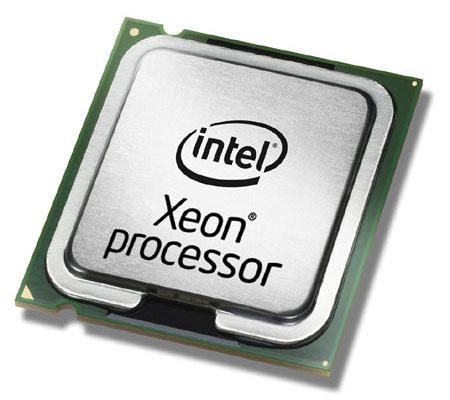

Intel CM8066002032901-RFB Intel XEON E5-2609v4/8x1.7 CM8066002032901-RFB

The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.

Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.

Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.

Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.

Features



Commodity Classification Automated Tracking System (CCATS)



G077159


CPU configuration (max)



2


Embedded options available



Yes


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Harmonized System (HS) code



85423119


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



40


PCI Express CEM revision



3.0


PCI Express slots version



3.0


Physical Address Extension (PAE)



Yes


Physical Address Extension (PAE)



46 bit


Scalability



2S


Supported instruction sets



AVX 2.0


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Logistics data



Harmonized System (HS) code



85423119


Memory



ECC



Yes


Maximum internal memory supported by processor



1.5 TB


Memory channels



Quad-channel


Memory clock speeds supported by processor



1600, 1866


Memory types supported by processor



DDR4-SDRAM


Operational conditions



Tcase



74 °C


Other features



Compatibility



Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR


Maximum internal memory



1572864 MB


Maximum internal memory



1.5 TB


Package dimensions



Gross Weight (Package, kg)



0.7 kg


Power



Thermal Design Power (TDP)



85 Watt


VID Voltage Range



0 - 0 V


Processor



Box



No


Bus type



QPI


Component for



Server/workstation


Cooler included



No


Memory bandwidth supported by processor (max)



59.7 GB/s


Number of QPI links



2


Processor ARK ID



92990


Processor base frequency



1.7 GHz


Processor cache



20 MB


Processor cache type



Smart Cache


Processor code



SR2P1


Processor codename



Broadwell


Processor cores



8


Processor family



Intel® Xeon® E5 v4


Processor frequency



1.7 GHz


Processor lithography



14 nm


Processor manufacturer



Intel


Processor model



E5-2609V4


Processor operating modes



64-bit


Processor series



Intel Xeon E5-2600 v4


Processor socket



LGA 2011-v3


Processor threads



8


Stepping



R0


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



85 Watt


VID Voltage Range



0 - 0 V


Processor special features



Conflict-Free processor



Yes


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



Yes


Intel Enhanced Halt State



Yes


Intel Flex Memory Access



No


Intel Identity Protection Technology version



0.00


Intel Secure Key Technology version



1.00


Intel Trusted Execution Technology



Yes


Intel TSX-NI



Yes


Intel TSX-NI version



1.00


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® AES New Instructions (Intel® AES-NI)



Yes


Intel® Hyper Threading Technology (Intel® HT Technology)



No


Intel® Identity Protection Technology (Intel® IPT)



No


Intel® OS Guard



Yes


Intel® Secure Key



Yes


Intel® Transactional Synchronization Extensions



Yes


Intel® Turbo Boost Technology



No


Intel® vPro™ Platform Eligibility



Yes


Intel® vPro™ Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.6 kg


Technical details



Bus bandwidth



6.4


Bus speed



6.4 GT/s


Bus type units



GT/s


End of servicing updates date



Thursday, June 30, 2022


Last change



63903513


Launch date



Q1'16


Processor brand name



Intel Xeon


Processor cache



20480 KB


Product family



Intel Xeon Processor E5 v4 Family


Product type



Processor


Servicing status



End of Servicing Updates


Status



Launched


Supported memory types



DDR4-SDRAM


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



45mm x 52.5mm mm
