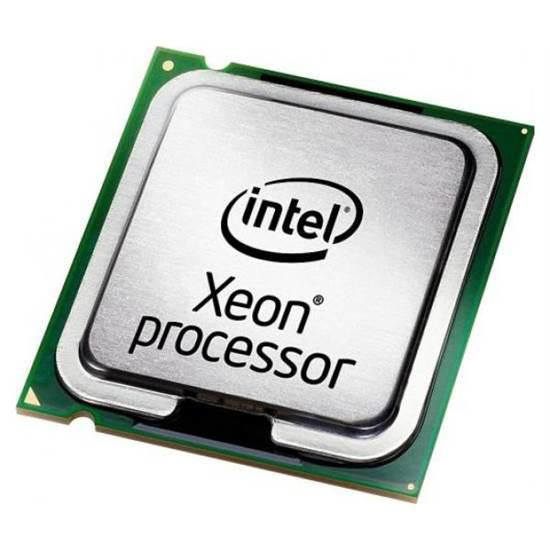

Intel CM8067702870648-RFB ntel Xeon SP E3-1270v6/3.8 CM8067702870648-RFB

Powerful Delivery
Support greater HD and UHD video trans code performance with up to 18 AVC video trans codes per processor and up to 2 HEVC trans codes per processor.

Built for Professionals
Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications.

Reliability for Small and Medium Businesses
No matter what the size of your business, the value of your data is enormous. Keep it accessible and better protected at all times with an affordable Intel Xeon processor E3-1200 v6 product family-based server.

High Image Quality
Improve visual experiences with Intel� Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.

Intel� Iris� Pro Graphics
Provide the rich visual experiences end users seek while benefiting from more energy-efficient performance that enables greater density of video streams with the Intel� Iris� Pro Graphics P580.

Intel� Turbo Boost Technology 2.0
Intel� Turbo Boost Technology 2.05 accelerates processor and graphics performance for peak loads, automatically allowing processor cores to run faster.

Intel� Solid-State Drive Data Center Family
Unleash data center performance with the Intel� Solid-State Drive Data Center Family (Intel� SSD Data Center Family)�technology designed to improve performance, reduce power use, and lower operating costs.

Visual Cloud Computing
Gain flexibility, quality, and TCO-optimized delivery with solutions aimed to enhance video delivery, cloud graphics, and visual understanding.

Small Business Server
Increase employee productivity and protect valuable company data efficiently�and affordably�by adding an on-premises server to your business.

Entry Workstation
Enable better designs and faster time to market with powerful workstation products.

Features



Commodity Classification Automated Tracking System (CCATS)



G077159


CPU configuration (max)



1


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Harmonized System (HS) code



85423119


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



16


PCI Express CEM revision



3.0


PCI Express configurations



1x16, 2x8, 1x8+2x4


PCI Express slots version



3.0


Scalability



1S


Supported instruction sets



SSE4.1, SSE4.2, AVX 2.0


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


On-board graphics card 4K support



No


Logistics data



Harmonized System (HS) code



85423119


Memory



ECC



Yes


Maximum internal memory supported by processor



64 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



1866, 2400


Memory types supported by processor



DDR4-SDRAM, DDR3L-SDRAM


Other features



Graphics output



N/A


Maximum internal memory



65536 MB


Maximum internal memory



64 GB


Package dimensions



Gross Weight (Package, kg)



0.7 kg


Power



Thermal Design Power (TDP)



72 Watt


VID Voltage Range



0.55 - 1.52 V


Processor



Box



No


Bus type



DMI3


Component for



Server/workstation


Cooler included



No


Memory bandwidth supported by processor (max)



37.5 GB/s


Processor ARK ID



97479


Processor base frequency



3.8 GHz


Processor boost frequency



4.2 GHz


Processor cache



8 MB


Processor cache type



Smart Cache


Processor code



SR326


Processor codename



Kaby Lake


Processor cores



4


Processor family



Intel� Xeon� E3 v6


Processor frequency



3.8 GHz


Processor lithography



14 nm


Processor manufacturer



Intel


Processor model



E3-1270V6


Processor operating modes



64-bit


Processor series



Intel Xeon E3-1200 v6


Processor socket



LGA 1151 (Socket H4)


Processor threads



8


Stepping



B0


System bus rate



8 GT/s


Thermal Design Power (TDP)



72 Watt


VID Voltage Range



0.55 - 1.52 V


Processor special features



Conflict-Free processor



Yes


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Clear Video Technology



No


Intel Enhanced Halt State



Yes


Intel Secure Key Technology version



1.00


Intel Software Guard Extensions (Intel SGX)



Yes


Intel Trusted Execution Technology



Yes


Intel TSX-NI



Yes


Intel TSX-NI version



1.00


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Boot Guard



Yes


Intel� Clear Video HD Technology (Intel� CVT HD)



No


Intel� Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)



No


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� InTru� 3D Technology



No


Intel� Memory Protection Extensions (Intel� MPX)



Yes


Intel� Optane� Memory Ready



Yes


Intel� OS Guard



Yes


Intel� Quick Sync Video Technology



No


Intel� Secure Key



Yes


Intel� Transactional Synchronization Extensions



Yes


Intel� Turbo Boost Technology



2.0


Intel� Turbo Boost Technology 2.0 frequency



4.2 GHz


Intel� vPro� Platform Eligibility



Yes


Intel� vPro� Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.6 kg


Technical details



Bus bandwidth



8


Bus speed



8 GT/s


Bus type units



GT/s


Last change



63903513


Launch date



Q1'17


Maximum memory



64 GB


Maximum resolution & refresh rate (DisplayPort)



N/A


Maximum resolution & refresh rate (HDMI)



N/A


Maximum resolution & refresh rate (Integrated Flat Panel)



N/A


Maximum resolution & refresh rate (VGA)



N/A


Processor brand name



Intel Xeon


Processor cache



8192 KB


Product family



Intel Xeon Processor E3 v6 Family


Product type



Processor


Servicing status



Baseline Servicing


Status



Launched


Supported memory types



DDR4-SDRAM, DDR3L-SDRAM


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



37.5 x 37.5 mm
