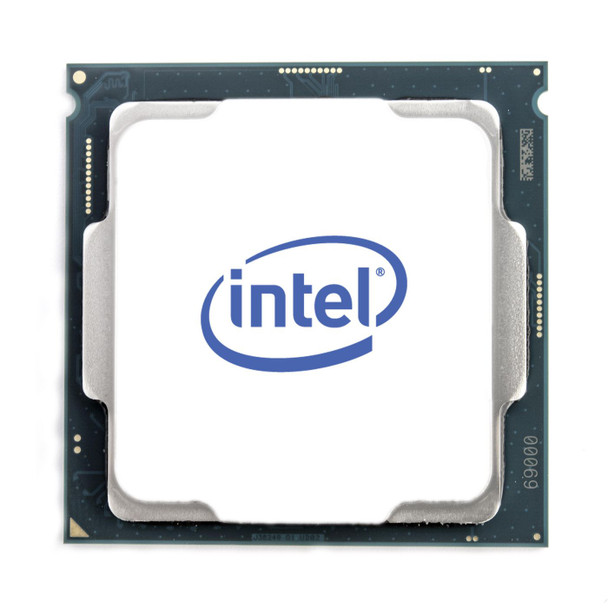

Intel CM8068403358913-RFB CORE I5-8400T 170GHZ CM8068403358913-RFB

Get Unprecedented Power and Responsiveness
Now everyday computer tasks can happen faster. Edit photos and videos seamlessly. Move between programs and windows quickly. Multitask easily. Better still, all that performance comes with up to 10 hours of battery life, so you can take your computer wherever you go without worrying about cords and plug points.

Make Your Computer an Entertainment Center
Get an amazing entertainment hub�stream 4K UHD videos, power virtual reality, and play the most demanding games. With 4x more pixels on screen than traditional HD, you can enjoy sharp, lifelike visuals, complex shading, and fast frame rates�all with virtually no stuttering, buffering, or lags. And be ready for revolutionary immersive experiences yet to come.

Easy to Use, Hard to Break Into
Built-in security adds a critical layer of protection to make password logons, browsing, and online payments safe and simple. You can log on with a look, your voice, or your fingerprint for rock-solid security that�s fast and hassle free. Store passwords, personal information, and auto-fill information with one master password. Plus touch screen, voice commands, and stylus options offer natural and intuitive interactions.

Thunderbolt� 3 Technology
Remove the burden of multiple cables and get one compact port that does it all - power your PC, transfer data, and connect with dual 4K UHD displays.

Intel� Graphics Technology
Immerse yourself in vivid entertainment with the brilliance of Intel� Graphics Technology.

Intel� Online Connect
With Intel� Online Connect, security is built-in 7th Generation Intel� Core� processors and above, which adds a layer of protection to make browsing and online payments safe and simple.

Intel� Optane� Technology
Eliminating bottlenecks requires better storage memory that is fast, inexpensive, and non-volatile. With Intel� Optane� technology, you can unleash the power of your processor instead of it working at a fraction of it.

Features



Commodity Classification Automated Tracking System (CCATS)



G077159


CPU configuration (max)



1


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Idle States



Yes


Market segment



Desktop


Maximum number of PCI Express lanes



16


PCI Express CEM revision



3.0


PCI Express configurations



1x16, 2x8, 1x8+2x4


PCI Express slots version



3.0


Scalability



1S


Supported instruction sets



SSE4.1, SSE4.2, AVX 2.0


Thermal Monitoring Technologies



Yes


Thermal solution specification



PCG 2015A


Graphics



Discrete graphics card



No


Discrete graphics card model



Not available


Maximum on-board graphics card memory



64 GB


Number of displays supported (on-board graphics)



3


On-board graphics card



Yes


On-board graphics card 4K support



Yes


On-board graphics card base frequency



350 MHz


On-board graphics card DirectX version



12.0


On-board graphics card dynamic frequency (max)



1050 MHz


On-board graphics card maximum resolution (DisplayPort)



4096 x 2304 Pixels


On-board graphics card maximum resolution (eDP - Integrated Flat Panel)



4096 x 2304 Pixels


On-board graphics card maximum resolution (HDMI)



4096 x 2304 Pixels


On-board graphics card model



Intel� UHD Graphics 630


On-board graphics card OpenGL version



4.5


On-board graphics card refresh rate at maximum resolution (DisplayPort)



60 Hz


On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)



60 Hz


On-board graphics card refresh rate at maximum resolution (HDMI)



24 Hz


Logistics data



Harmonized System (HS) code



8542310001


Memory



ECC



No


Maximum internal memory supported by processor



64 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



2666


Memory types supported by processor



DDR4-SDRAM


Operational conditions



Tjunction



100 �C


Other features



Maximum internal memory



65536 MB


Maximum internal memory



128 GB


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Processor



Box



No


Bus type



DMI3


Compatible chipsets



Intel� B360, Intel� H310, Intel� H370, Intel Q370


Component for



PC


Configurable TDP-down



25 Watt


Configurable TDP-down frequency



1.2 GHz


Cooler included



No


Generation



8th Generation


Memory bandwidth supported by processor (max)



41.6 GB/s


Processor ARK ID



129940


Processor base frequency



1.7 GHz


Processor boost frequency



3.3 GHz


Processor cache



9 MB


Processor cache type



Smart Cache


Processor code



SR3X6


Processor codename



Coffee Lake


Processor cores



6


Processor family



Intel� Core� i5


Processor generation



8th gen Intel� Core� i5


Processor lithography



14 nm


Processor manufacturer



Intel


Processor model



i5-8400T


Processor operating modes



64-bit


Processor series



Intel Core i5-8400 Desktop Series


Processor socket



LGA 1151 (Socket H4)


Processor threads



6


Stepping



U0


System bus rate



8 GT/s


Thermal Design Power (TDP)



35 Watt


Processor special features



Conflict-Free processor



Yes


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Clear Video Technology



Yes


Intel Enhanced Halt State



Yes


Intel Identity Protection Technology version



1.00


Intel Secure Key Technology version



1.00


Intel Software Guard Extensions (Intel SGX)



Yes


Intel Stable Image Platform Program (SIPP)



No


Intel Stable Image Platform Program (SIPP) version



0


Intel Trusted Execution Technology



No


Intel TSX-NI



No


Intel TSX-NI version



0.00


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Boot Guard



Yes


Intel� Clear Video HD Technology (Intel� CVT HD)



Yes


Intel� Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Identity Protection Technology (Intel� IPT)



Yes


Intel� InTru� 3D Technology



Yes


Intel� Memory Protection Extensions (Intel� MPX)



Yes


Intel� Optane� Memory Ready



Yes


Intel� OS Guard



Yes


Intel� Quick Sync Video Technology



Yes


Intel� Secure Key



Yes


Intel� Transactional Synchronization Extensions



No


Intel� Turbo Boost Technology



2.0


Intel� Turbo Boost Technology 2.0 frequency



3.3 GHz


Intel� vPro� Platform Eligibility



No


Product dimensions



Net Weight (Product, kg)



0.4 kg


Technical details



Bus bandwidth



8


Bus speed



8 GT/s


Bus type units



GT/s


Last change



63903513


Launch date



Q2'18


Maximum graphics card memory



64 GB


Maximum memory



128 GB


Maximum resolution & refresh rate (DisplayPort)



4096x2304@60Hz


Maximum resolution & refresh rate (HDMI)



4096x2304@24Hz


Maximum resolution & refresh rate (Integrated Flat Panel)



4096x2304@60Hz


Processor brand name



8th Gen Intel Core i5 8th Gen Intel Core i5 Processor


Processor cache



9216 KB


Processor ID



0x3E92


Product family



Intel Core Processors


Product type



Processor


Status



Discontinued


Supported memory types



DDR4-SDRAM


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



37.5 x 37.5 mm
