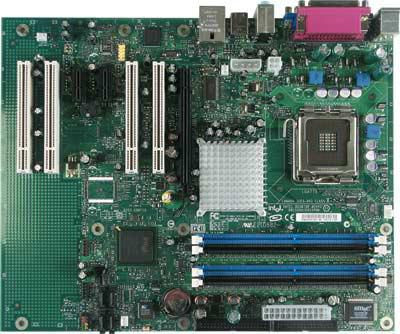

Intel D915GAV-RFB DESKTOP SYSTEM BOARD D915GAV-RFB

The Intel� Desktop Board D915GAV supports the latest Intel� Pentium� 4 processors featuring Hyper-Threading Technology1 and is designed to optimize a broad range of usage models at home and in the office.

This desktop board features Intel� High Definition Audio, PCI Express expansion slots, and Intel� PRO 10/100 LAN (optional). In addition, this desktop board delivers exceptional platform flexibility with both PCI Express x16 graphics and Intel� Graphics Media Accelerator 900, and support for dual-channel DDR400 memory.

Expansion slots



PCI Express x1 slots



2


PCI Express x16 slots



1


PCI slots



4


Features



Audio output channels



5.1 channels


Compatible operating systems



Microsoft Windows XP/2000


Motherboard form factor



ATX


Power source type



ATX


Graphics



On-board graphics card



Yes


Parallel processing technology support



Not supported


Internal I/O



ATX Power connector (24-pin)



Yes


CD/AUX audio in



Yes


Chassis intrusion connector



Yes


Floppy disk drive connector



Yes


Front panel audio connector



Yes


Number of Parallel ATA connectors



1


Number of SATA connectors



4


USB 2.0 connectors



4


Memory



Maximum internal memory



4 GB


Number of memory slots



4


Supported memory clock speeds



333, 400


Network



Networking features



Fast Ethernet


Other features



Floppy disk drive connector



Yes


Package dimensions



Gross Weight (Package, kg)



0.8 kg


Processor



Compatible processor series



Intel� Pentium� 4


Processor socket



LGA 775 (Socket T)


Product dimensions



Net Weight (Product, kg)



0.7000000000000001 kg


Product Depth



24.38 cm


Product Width



30.48 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


Headphone outputs



1


Microphone in



Yes


Parallel ports quantity



1


PS/2 ports quantity



2


Serial ports quantity



1


USB 2.0 ports quantity



4


VGA (D-Sub) ports quantity



1


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
