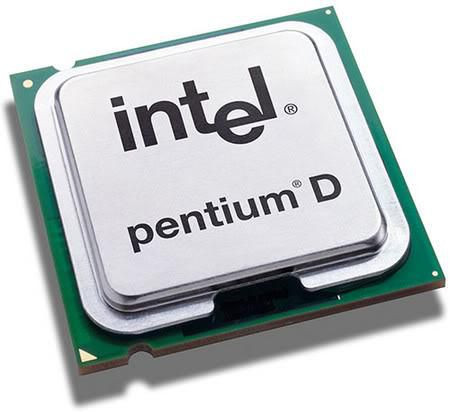

Intel HH80551PG0802MN-RFB 3GHZ/800MHZ/2MB PROC HH80551PG0802MN-RFB

An Intel Pentium D processor-based PC delivers an extra powerful gear when you need it. Accomplish more while running multiple applications, such as editing video while downloading music. The Intel Pentium D processor 840, 830, and 820 extend Intel's Desktop dual-core product line. The Pentium D processor uses Flip-Chip Land Grid Array (FC-LGA4) package technology, and plugs into a 775-land LGA socket. The Pentium D processor utilizes the Intel NetBurst microarchitecture and maintains the tradition of compatibility with IA-32 software. The Intel Pentium D processor supports Intel Extended Memory 64 Technology (Intel EM64T)F as an enhancement to Intel's IA-32 architecture. This enhancement enables the processor to execute operating systems and applications written to take advantage of Intel EM64T. The Intel Pentium D processor also includes the Execute Disable Bit capability. This feature, combined with a supported operating system, allows memory to be marked as executable or non-executable.

Features



Embedded options available



No


Execute Disable Bit



Yes


Harmonized System (HS) code



8473301180


Idle States



Yes


Market segment



Desktop


Number of Processing Die Transistors



230 M


Physical Address Extension (PAE)



32 bit


Processing Die size



206 mm�


Thermal Monitoring Technologies



No


Graphics



On-board graphics card



No


Memory



ECC



No


Operational conditions



Maximum operating temperature



69.8 �C


Tcase



69.8 �C


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Thermal Design Power (TDP)



130 Watt


VID Voltage Range



1.25 - 1.4 V


Processor



Box



No


Bus type



FSB


Cooler included



No


CPU multiplier (bus/core ratio)



15


FSB Parity



No


L2 cache speed



3 GHz


Processor ARK ID



27513


Processor base frequency



3 GHz


Processor cache



2 MB


Processor cache type



L2


Processor code



SL88S


Processor cores



2


Processor family



Intel� Pentium� D


Processor frequency



3 GHz


Processor front side bus



800 MHz


Processor lithography



90 nm


Processor manufacturer



Intel


Processor model



830


Processor operating modes



64-bit


Processor series



Intel Pentium D 800 Series


Processor socket



LGA 775 (Socket T)


Processor threads



2


Stepping



A0


Thermal Design Power (TDP)



130 Watt


VID Voltage Range



1.2 - 1.4 V


Processor special features



Conflict-Free processor



No


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



No


Intel Enhanced Halt State



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



No


Intel Virtualization Technology for Directed I/O (VT-d)



No


Intel� AES New Instructions (Intel� AES-NI)



No


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Turbo Boost Technology



No


Product dimensions



Net Weight (Product, kg)



1.0999999999999999 kg


Technical details



Bus bandwidth



800


Bus speed



800 MHz


Bus type units



MHz


Last change



63903513


Launch date



Q2'05


Processor brand name



Intel Pentium


Processor cache



2048 KB


Product family



Legacy Intel Pentium Processor


Product type



Processor


Status



Discontinued


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



37.5 x 37.5 mm
