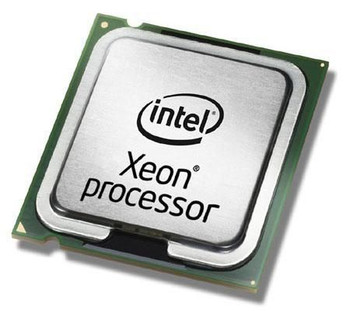

Intel HH80563JH0368M-RFB Xeon Processor L5320 1.86 HH80563JH0368M-RFB

Quad-Core Intel Xeon processor 5300 series delivers the most headroom and performance of any two-processor general-purpose server, so you can confidently consolidate applications onto fewer systems using proven industry-standard virtualization solutions. With the highest performance per watt of our Intel� Xeon� processors, you can virtualize environments onto dense 1U rack and blade form factors with fewer cooling challenges, giving you more performance and services per square foot.

Quad-Core Intel Xeon processor 5300 series integrates virtualization hardware support with Intel Virtualization Technology, which enables more efficient virtualization solutions and greater capabilities including 64-bit guest operating system support. The new Quad-Core Intel Xeon processor 5300 includes new Intel VT extensions around interrupt handling that will further optimize virtualization software efficiency. 5 A growing number of independent software vendors (ISV) and original equipment manufacturers (OEM) support virtualization on Intel Virtualization Technology-enabled platforms through the Intel and VMware Virtualize ASAP program, the industry�s first and only collaborative, global effort to deliver optimized virtualization solutions and practices to IT professionals and companies.

The 64-bit computing of the Quad-Core Intel Xeon processor 5300 series gives you additional application headroom, memory flexibility, and increased security for virtual and dedicated environments. By supporting larger data sets and both 32- and 64-bit applications, Dual-Core and Quad-Core Intel Xeon processor-based servers and workstations allow the smooth migration of your business to 64-bit applications. And, with millions of 64-bit processors already shipped, you know you can depend on Intel�s proven track record to help you make a smooth transition to the next level of computing.

Features



Commodity Classification Automated Tracking System (CCATS)



NA


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



3A991.A.1


Harmonized System (HS) code



8542310001


Idle States



Yes


Images Type Map



divimg src="https://ark.intel.com/inc/images/diagrams/diagram-5.gif" title="Block Diagram" /img src="https://ark.intel.com/inc/images/diagrams/diagram-6.gif" title="Block Diagram" //div


Market segment



Server


Number of Processing Die Transistors



582 M


Processing Die size



286 mm�


Thermal Monitoring Technologies



Yes


Operational conditions



Maximum operating temperature



60 �C


Tcase



60 �C


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Thermal Design Power (TDP)



50 Watt


VID Voltage Range



1.100 - 1.325 V


Processor



Box



No


Bus type



FSB


Component for



Server/workstation


Cooler included



No


CPU multiplier (bus/core ratio)



7


FSB Parity



Yes


L2 cache speed



1.86 GHz


Processor ARK ID



29767


Processor base frequency



1.86 GHz


Processor cache



8 MB


Processor cache type



L2


Processor code



SLAC9


Processor cores



4


Processor family



Intel� Xeon�


Processor frequency



1.86 GHz


Processor front side bus



1066 MHz


Processor lithography



65 nm


Processor manufacturer



Intel


Processor model



L5320


Processor operating modes



64-bit


Processor series



Intel Xeon 5300 Series


Processor socket



LGA 771 (Socket J)


Processor threads



4


Stepping



B3


Thermal Design Power (TDP)



50 Watt


VID Voltage Range



1.1 - 1.25 V


Processor special features



Conflict-Free processor



No


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



No


Intel Enhanced Halt State



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel VT-x with Extended Page Tables (EPT)



No


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Turbo Boost Technology



No


Product dimensions



Net Weight (Product, kg)



1 kg


Technical details



Bus bandwidth



1066


Bus speed



1066 MHz


Bus type units



MHz


Last change



63903513


Launch date



Q1'07


Processor brand name



Intel Xeon


Processor cache



8192 KB


Product family



Intel Xeon Processor 5000 Sequence


Product type



Processor


Status



Discontinued


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



37.5 x 37.5 mm
