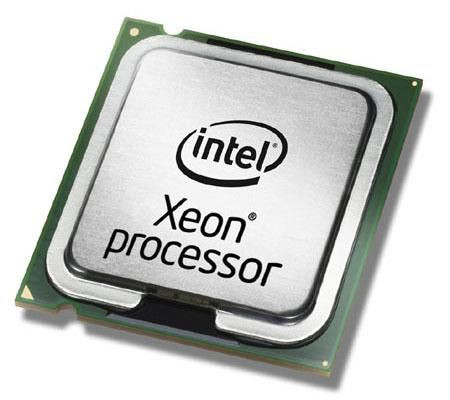

Intel LF80565QH0464M-RFB E-7320 2133/4M/1066 Xeon LF80565QH0464M-RFB

The Intel� Xeon� Processor 7300 Series - multi-processor servers utilizing four Intel� CoreTM microarchitecture cores. These processors are based on Intel�s 65 nanometer process technology combining high performance with the power efficiencies of a low-power microarchitecture. The Quad-Core Intel� Xeon� 7300 Series consists of two die, each die containing two processor cores. Some key features include on-die, 64 KB Level 1 instruction data caches per die and 2x4MB shared Level 2 cache with Advanced Transfer Cache Architecture. The processor�s Data Prefetch Logic speculatively fetches data to the L2 cache before an L1 cache requests occurs, resulting in reduced bus cycle penalties and improved performance. The 1066 MHz Front Side Bus (FSB) is a quad-pumped bus running off a 266 MHz system clock making 8.5 GBytes per second data transfer rates possible. The Quad-Core Intel� Xeon� X7350 processor offers higher clock frequencies than the other Quad-Core
Intel� Xeon� Processor 7300 Series for platforms that are targeted for the performance optimized segment. The Quad-Core Intel� Xeon� L7345 Processor is a lower voltage, lower power processor.

Enhanced thermal and power management capabilities are implemented including Thermal Monitor (TM1), Thermal Monitor 2 (TM2) and Enhanced Intel SpeedStep� Technology. TM1 and TM2 provide efficient and effective cooling in high temperature situations. Enhanced Intel SpeedStep Technology allows trade-offs to be made between performance and power consumption. This may lower average power consumption (in conjunction with OS support).

The Intel� Xeon� Processor 7300 Series features include Advanced
Dynamic Execution, enhanced floating point and multi-media units, Streaming SIMD Extensions 2 (SSE2) and Streaming SIMD Extensions 3 (SSE3). Advanced Dynamic Execution improves speculative execution and branch prediction internal to the processor. The floating point and multi-media units include 128-bit wide registers and a separate register for data movement. SSE3 instructions provide highly efficient doubleprecision floating point, SIMD integer, and memory management operations.

The Intel� Xeon� Processor 7300 Series support Intel� 64 as an
enhancement to Intel's IA-32 architecture. This enhancement allows the processor to execute operating systems and applications written to take advantage of the 64-bit extension technology. Further details on Intel� 64 Technology and its programming model can be found in the Intel� 64 and IA-32 Architectures Software Developer's Manual.

Features



Commodity Classification Automated Tracking System (CCATS)



NA


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



3A991.A.1


Harmonized System (HS) code



8542310001


Idle States



Yes


Market segment



Server


Number of Processing Die Transistors



582 M


Processing Die size



286 mm�


Thermal Monitoring Technologies



Yes


Operational conditions



Maximum operating temperature



66 �C


Tcase



66 �C


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



1 - 1.5 V


Processor



Box



No


Bus type



FSB


Cooler included



No


CPU multiplier (bus/core ratio)



8


FSB Parity



Yes


Processor ARK ID



30793


Processor base frequency



2.13 GHz


Processor cache



4 MB


Processor cache type



L2


Processor code



SLA69


Processor cores



4


Processor family



Intel� Xeon� E7 Family


Processor frequency



2.13 GHz


Processor front side bus



1066 MHz


Processor lithography



65 nm


Processor manufacturer



Intel


Processor model



E7320


Processor operating modes



64-bit


Processor series



Intel Xeon 7300 Series


Processor socket



Socket 604 (mPGA604)


Processor threads



4


Stepping



G0


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



1 - 1.5 V


Processor special features



Conflict-Free processor



No


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



Yes


Intel Enhanced Halt State



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Turbo Boost Technology



No


Product dimensions



Net Weight (Product, kg)



1 kg


Technical details



Bus bandwidth



1066


Bus speed



1066 MHz


Bus type units



MHz


Last change



63903513


Launch date



Q3'07


Processor brand name



Intel Xeon


Processor cache



4096 KB


Product family



Intel Xeon Processor 7000 Sequence


Product type



Processor


Status



Discontinued


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



53.3mm x 53.3mm mm
