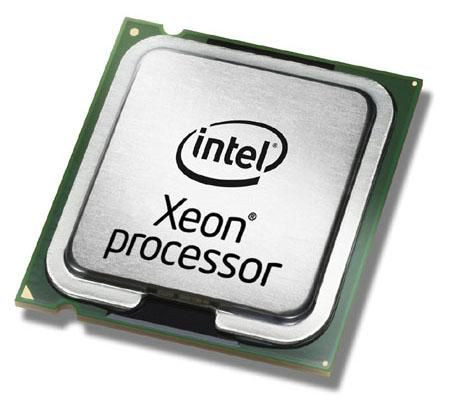

Intel LF80565QH0568M-RFB Xeon MP 2.4GHZ 8MB QC E7340 LF80565QH0568M-RFB

Designed for maximum performance and reliability, these massively scalable 2-way to 256-way, 64-bit multi-core servers are designed to provide exceptional scalable performance and mission-critical class reliability for your most data-demanding applications and virtualization projects.

The Dual-Core Intel� Xeon� processor 7000 series is designed for high-performance multi-processor server applications for mid-tier enterprise serving and server consolidation. Based on the Intel NetBurst� microarchitecture and the new Hyper-Threading Technology, it is binary compatible with pervious Intel Architecture (IA-32) processors. The addition of Intel� 64 architecture provides 64-bit computing and 40-bit addressing provides up to 1 Terabyte of direct memory addressability. The Dual-Core Intel Xeon processor 7000 series is scalable to four processors and beyond in a multiprocessor system providing exceptional performance for applications running on advanced operating systems such as Microsoft Windows 2003 server, and Linux operating systems. The Intel Xeon processor 7000 series delivers compute power at unparalleled value and flexibility for internet infrastructure and departmental server applications, including application servers, databases, and business intelligence. The Inter NetBurst microarchitecture with Hyper-Threading Technology and Intel 64 architecture delivers outstanding performance and headroom from peak internet server workloads, resulting in faster response times, support for more users, and improved scalability.

Enhanced thermal and power management capabilities are implemented including Thermal Monitor and Enhanced Intel SpeedStep� Technology. Thermal Monitor provides efficient and effective cooling in high temperature situations. Enhanced Intel SpeedStep Technology allows trade-offs to be made between performance and power consumption. This may lower average power consumption (in conjunction with OS support).

The Dual-Core Intel Xeon processor 7000 series supports Hyper-Threading Technology (HT Technology). This feature allows a single, physical processor to function as two logical processors. While some execution resources such as caches, execution units, and buses are shared, each logical processor has its own architectural state with its own set of general-purpose registers, control registers to provide increased system responsiveness in multitasking environments, and headroom for next generation multi-threaded applications.

Features



Commodity Classification Automated Tracking System (CCATS)



NA


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



3A991.A.1


Harmonized System (HS) code



8542310001


Idle States



Yes


Market segment



Server


Number of Processing Die Transistors



582 M


Processing Die size



286 mm�


Thermal Monitoring Technologies



Yes


Logistics data



Harmonized System (HS) code



8542310001


Operational conditions



Maximum operating temperature



66 �C


Tcase



66 �C


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



1 - 1.5 V


Processor



Box



No


Bus type



FSB


Cooler included



No


CPU multiplier (bus/core ratio)



9


FSB Parity



Yes


Processor ARK ID



30795


Processor base frequency



2.4 GHz


Processor cache



8 MB


Processor cache type



L2


Processor code



SLA68


Processor cores



4


Processor family



Intel� Xeon� E7 Family


Processor frequency



2.4 GHz


Processor front side bus



1066 MHz


Processor lithography



65 nm


Processor manufacturer



Intel


Processor model



E7340


Processor operating modes



64-bit


Processor series



Intel Xeon 7300 Series


Processor socket



Socket 604 (mPGA604)


Processor threads



4


Stepping



G0


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



1 - 1.5 V


Processor special features



Conflict-Free processor



No


Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Demand Based Switching



Yes


Intel Enhanced Halt State



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Turbo Boost Technology



No


Product dimensions



Net Weight (Product, kg)



1 kg


Technical details



Bus bandwidth



1066


Bus speed



1066 MHz


Bus type units



MHz


Last change



63903513


Launch date



Q3'07


Processor brand name



Intel Xeon


Processor cache



8192 KB


Product family



Intel Xeon Processor 7000 Sequence


Product type



Processor


Status



Discontinued


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



53.3mm x 53.3mm mm
