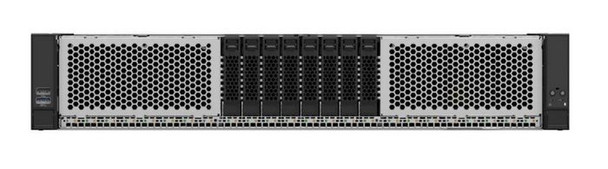

Intel M50CYP2UR208 M50CYP2UR208 Intel C621A Lga M50CYP2UR208

The Intel� Server System M50CYP Family is designed to be your primary workhorse server for all your mainstream needs, including collaboration, storage, database, web server, ecommerce, analytics, and more.

Design



Chassis type



Rack (2U)


Rack rails



No


Rack-Friendly board



Yes


Redundant fans support



Yes


Features



Commodity Classification Automated Tracking System (CCATS)



G157815L1


Export Control Classification Number (ECCN)



5A002U


Integrated BMC with IPMI



Yes


Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



2.0


Graphics



On-board graphics card model



Aspeed AST2500


Logistics data



Harmonized System (HS) code



8473301180


Memory



Maximum internal memory



12 TB


Number of DIMM slots



32


Supported memory types



DDR4-SDRAM


Other features



CPU configuration (max)



2


Extended warranty available for purchase (select countries)



Yes


Launch date



Q2'21


On-board graphics card



Yes


Riser slot 1 number of lanes



32


Riser slot 2 number of lanes



32


Riser slot 3 number of lanes



16


Status



Launched


Supported RAID configuration



0/1/5/10


Target market



Mainstream


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Ports & interfaces



Number of SAS ports



8


Number of SATA connectors



10


Serial ports quantity



2


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB ports quantity



6


Power



Power supply



2100 Watt


Power supply type



AC


Redundant power supply (RPS) support



Yes


Thermal Design Power (TDP)



270 Watt


Processor



Built-in processor



No


Motherboard chipset



Intel C621A


Number of processors supported



2


Processor manufacturer



Intel


Processor socket



LGA 4189


Processor special features



Intel Advanced Management Technology



Yes


Intel Intelligent Power Node Manager



Yes


Intel Remote Management Module Support



Y


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel� Optane� Memory Ready



Yes


Processor ARK ID



214837


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



44.6 cm


Product Height



8.7 cm


Product Width



77 cm


Storage



Hot-swap HDD bays



Yes


Number of storage drives supported



8


RAID levels



0, 1, 5, 10


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
