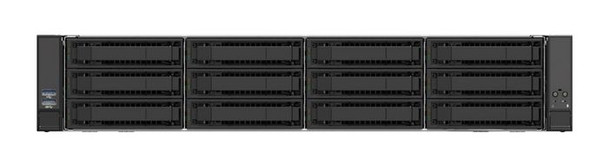

Intel M50FCP2UR312 M50FCP2UR312 Intel C741 M50FCP2UR312

Intel� Trusted Execution Technology
Intel� Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel� processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel� Virtualization Technology for Directed I/O (VT-d)
Intel� Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium� processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

TPM Version
TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.

Integrated BMC with IPMI
IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel� Optane� Memory Supported
Intel� Optane� memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel� Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel� Optane� memory requires specific hardware and software configuration.

RAID Configuration
RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.

Intel� Remote Management Module Support
The Intel� Remote Management Module (Intel� RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Intel� Advanced Management Technology
Intel� Advanced Management Technology features an isolated, independent, secure, and highly reliable network connection, with an Integrated Baseboard Management Controller (Integrated BMC) configuration from within BIOS. Also includes an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates, and an automatic Integrated BMC stall detection and reset.

Intel� Total Memory Encryption
TME � Total Memory Encryption (TME) helps protect data against exposure via physical attack on memory, such as cold-boot attacks.

Max # of UPI Links
Intel� Ultra Path Interconnect (UPI) links are a high speed, point-to-point interconnect bus between the processors, delivering increased bandwidth and performance over Intel� QPI.

Intel� Node Manager
Intel� Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.

Intel� Optane� Persistent Memory Supported
Intel� Optane� persistent memory is a revolutionary tier of non-volatile memory that sits between memory and storage to provide large, affordable memory capacity that is comparable to DRAM performance. Delivering large system-level memory capacity when combined with traditional DRAM, Intel Optane persistent memory is helping transform critical memory constrained workloads � from cloud, databases, in-memory analytics, virtualization, and content delivery networks.

Design



Chassis type



Rack (2U)


Heat sink included



Yes


Rack rails



No


Rack-Friendly board



Yes


Redundant fans support



Yes


Expansion slots



PCI Express slots version



5.0


Features



ARK ID



229746


Backplanes support



Yes


Commodity Classification Automated Tracking System (CCATS)



G157815L1


Export Control Classification Number (ECCN)



5A002U


Integrated BMC with IPMI



Yes


Intel� Optane� DC Persistent Memory Supported



Yes


Number of UPI links



3


Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



2.0


Logistics data



Harmonized System (HS) code



8473305100


Memory



Maximum internal memory



12 TB


Number of DIMM slots



32


Supported memory types



DDR5-SDRAM


Other features



CPU configuration (max)



2


Extended warranty available for purchase (select countries)



Yes


Launch date



Q1'23


On-board graphics card



No


Riser slot 1 number of lanes



32


Riser slot 2 number of lanes



32


Riser slot 3 number of lanes



16


Status



Launched


Supported board



Intel Server Board M50FCP2SBSTD


Supported RAID configuration



0/1/5/10


Target market



Mainstream


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Ports & interfaces



Number of SATA connectors



10


Serial ports quantity



1


USB 2.0 ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB ports quantity



5


Power



Power supply



2100 Watt


Power supply type



AC


Redundant power supply (RPS) support



Yes


Thermal Design Power (TDP)



250 Watt


Processor



Built-in processor



No


Compatible processor series



Intel� Xeon�


Motherboard chipset



Intel C741


Number of processors supported



2


Processor manufacturer



Intel


Processor socket



LGA 4677 (Socket E)


Processor special features



Intel Advanced Management Technology



Yes


Intel Intelligent Power Node Manager



Yes


Intel Remote Management Module Support



Y


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel� Optane� Memory Ready



Yes


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



43.8 cm


Product Height



8.7 cm


Product Width



77 cm


Storage



Hot-swap HDD bays



Yes


Number of 3.5" bays



12


Number of storage drives supported



12


RAID levels



0, 1, 5, 10


Storage drive sizes supported



3.5


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
