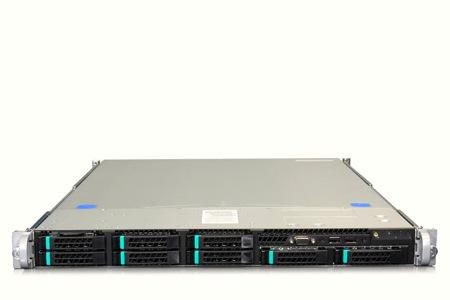

Intel R1208GZ4GCSAS Server Barebone Intel� C602 R1208GZ4GCSAS

Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

The Intel� Remote Management Module (Intel� RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Intel� Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.

Design



Chassis type



Rack (1U)


Heat sink



2


Heat sink included



Yes


Product colour



Black, Metallic


Rack rails



Yes


Rack-Friendly board



Yes


Redundant fans support



Yes


Expansion slots



PCI Express slots version



3.0


PCI Express x16 (Gen 3.x) slots



2


PCI Express x16 slots



2


PCI Express x8 slots



2


Features



ARK ID



56260


Backplanes



Included


Backplanes support



Yes


Commodity Classification Automated Tracking System (CCATS)



G145323


Export Control Classification Number (ECCN)



5A992C


Integrated BMC with IPMI



Yes


Market segment



Server


On-site support



Yes


Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



1.2


Logistics data



Harmonized System (HS) code



8473305100


Memory



ECC



Yes


Maximum internal memory



768 GB


Maximum RDIMM memory



768 GB


Maximum UDIMM memory



768 GB


Memory form factor



240-pin DIMM


Number of DIMM slots



24


Supported memory types



DDR3-SDRAM


Supported RDIMM clock speeds



1600


Network



Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Other features



2.5" HDD support



Supports up to 8 hot-swap 2.5" drives


CPU configuration (max)



2


Expected discontinuance date



Q1'13


Extended warranty available for purchase (select countries)



Yes


FireWire support



No


Last change



63903513


Launch date



Q1'12


Maximum memory



768 GB


On-board graphics card



Yes


Optical drive supported



Yes


Product codename



Grizzly Pass


Product family



1U server system


Product series



Intel R1000GZ


Product type



System


Redundant fans



Y


Status



Discontinued


Supported board



Intel Server Board S2600GZ


Supported RAID configuration



Hardware RAID - supports up to 6/60


Target market



Cloud/Datacenter


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Packaging data



Bundled software



Intel Server Management Software


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


InfiniBand



No


Number of SAS ports



8


Number of SATA connectors



10


Serial ports quantity



2


USB 2.0 ports quantity



6


USB ports quantity



6


Power



Number of power supply units



2


Power supply



750 Watt


Power supply type



AC


Redundant power supply (RPS) support



Yes


Processor



Compatible processor series



Intel� Xeon� E5 Family


Intel Xeon series



E5-2600


Maximum internal memory supported by processor



768 GB


Motherboard chipset



Intel� C602


Number of processors supported



2


Processor family



Intel


Processor manufacturer



Intel


Processor socket



LGA 2011 (Socket R)


Supported processor frequency (max)



3 GHz


Processor special features



Connector for Intel I/O Expansion Module x8 Gen 3



1


Intel Advanced Management Technology



Yes


Intel Build Assurance Technology



Yes


Intel Efficient Power Technology



Yes


Intel Intelligent Power Node Manager



Yes


Intel Local Control Panel Upgrade Support



No


Intel On-Demand Power Redundancy Technology



Yes


Intel Quiet Thermal Technology



Yes


Intel Rapid Storage Technology



No


Intel Rapid Storage Technology enterprise



Yes


Intel Remote Management Module Support



Y


Intel Server Customization Technology



Yes


Intel Server Management Software



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel� Matrix Storage Technology (Intel� MST)



No


Internal I/O Expansion Module x8 Gen 3



1


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



4.44 cm


Product Height



70.99 cm


Product Width



4.45 cm


Storage



Embedded USB (eUSB) SSD option



Yes


Hot-swap HDD bays



Yes


Number of 2.5" bays



8


Number of storage drives supported



8


Storage drive sizes supported



2.5


Supported storage drive interfaces



Serial Attached SCSI (SAS), Serial ATA, Serial ATA II


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
