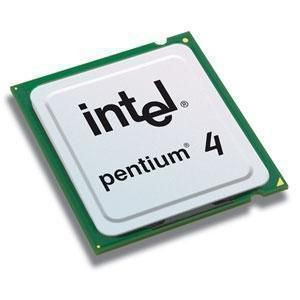

Intel RK80546PG0801M-RFB P4 3.0GHZ/800MHZ/1MB PROC RK80546PG0801M-RFB

The Intel Pentium 4 Processor is designed to deliver performance across usages�such as image processing, video content creation, games and multimedia�where end-users can truly appreciate the performance. With a PC based on the Intel Pentium 4 Processor with HT Technology�, you get advanced performance and multitasking capabilities for today's digital home and digital office applications.

Intel� Hyper-Threading Technology
Intel� Hyper-Threading Technology (Intel� HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Features



Commodity Classification Automated Tracking System (CCATS)



NA


Embedded options available



No


Execute Disable Bit



No


Export Control Classification Number (ECCN)



3A991.A.1


Harmonized System (HS) code



8473301180


Idle States



No


Market segment



Desktop


Number of Processing Die Transistors



125 M


Processing Die size



112 mm�


Operational conditions



Maximum operating temperature



69.1 �C


Tcase



67.7 �C


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Thermal Design Power (TDP)



89 Watt


VID Voltage Range



1.25 - 1.4 V


Processor



Box



No


Bus type



FSB


Cooler included



No


CPU multiplier (bus/core ratio)



15


L2 cache speed



3 GHz


Processor ARK ID



27463


Processor base frequency



3 GHz


Processor cache



1 MB


Processor cache type



L2


Processor codename



Prescott


Processor cores



1


Processor family



Intel� Pentium� 4


Processor frequency



3 GHz


Processor front side bus



800 MHz


Processor lithography



90 nm


Processor manufacturer



Intel


Processor model



530


Processor operating modes



32-bit


Processor series



Intel Pentium 4 500 Series supporting Hyper-Threading Technology


Processor socket



LGA 775 (Socket T)


Processor threads



2


Stepping



D0


Thermal Design Power (TDP)



84 Watt


VID Voltage Range



1.2 - 1.425 V


Processor special features



Conflict-Free processor



No


Enhanced Intel SpeedStep Technology



No


Intel 64



No


Intel Demand Based Switching



No


Intel Enhanced Halt State



No


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



No


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Turbo Boost Technology



No


Product dimensions



Net Weight (Product, kg)



1.0999999999999999 kg


Technical details



Bus bandwidth



800


Bus speed



800 MHz


Bus type units



MHz


Last change



63903513


Launch date



Q2'04


Processor brand name



Intel Pentium


Processor cache



1024 KB


Product family



Legacy Intel Pentium Processor


Product type



Processor


Status



Discontinued


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



37.5 x 37.5 mm
