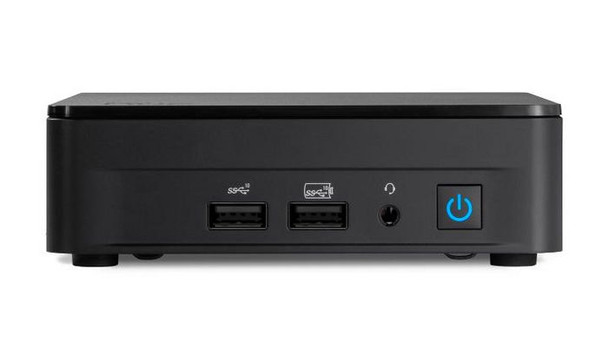

Intel RNUC13ANKI70000 Nuc 13 Pro Kit Nettop Black RNUC13ANKI70000

Audio



Built-in speaker(s)



No


Design



ARK ID



233101


Chassis type



UCFF


Cooling type



Active


LED indicators



Y, Yes


On/off switch



Yes


Product codename



Arena Canyon


Product colour



Black


Product family



Intel NUC


Product type



Mini PC barebone


Status



Launched


Expansion slots



Number of M.2 (M) slots



1


PCI Express slots version



4.0


Graphics



Graphics card family



Intel


Maximum resolution



7680 x 4320 Pixels


Number of displays supported



4


On-board graphics card



No


On-board graphics card model



Intel Iris Xe Graphics


Logistics data



Harmonized System (HS) code



8471500150


Memory



ECC



No


Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



SO-DIMM


Memory voltage



1.2


Non-ECC



Yes


Number of DIMM slots



2


Number of memory slots



2


Supported memory clock speeds



3200


Supported memory types



DDR4-SDRAM


Network



Bluetooth



Yes


Bluetooth version



5.3


Ethernet LAN



Yes


LAN controller



Intel I226-V


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



Wi-Fi 6E (802.11ax)


WLAN controller model



Intel Wi-Fi 6E AX211


Other features



Additional headers



Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector


DC input voltage



12 - 20 V


Launch date



Q1'23


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Commodity Classification Automated Tracking System (CCATS)



G157815L2


Compatible operating systems



Windows 10 IoT Enterprise*|Ubuntu*|Linux*


Export Control Classification Number (ECCN)



5A992C


Linux operating systems supported



RedHat EL Linux, Y, Yes


Motherboard form factor



UCFF


Operating system installed



No


Windows operating systems supported



Windows 10 IoT Enterprise, Windows 11 x64


Ports & interfaces



Combo headphone/mic port



Yes


DC-in jack



Yes


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


M.2 card slot (storage)



2280 NVMe (M); 2242 SATA (B)


M.2 card slot (wireless)



2230 (E-key) (E)


Number of SATA III connectors



1


Serial port via internal header



No


Thunderbolt 4 ports quantity



2


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB ports quantity



4


Power



Power supply type



External AC adapter


Processor



Built-in processor



Yes


CPU configuration (max)



1


Efficient cores



8


Efficient-core boost frequency



3.7 GHz


Performance cores



4


Performance-core boost frequency



5 GHz


Processor boost frequency



5 GHz


Processor cache



18 MB


Processor codename



Raptor Lake


Processor cores



12


Processor family



Intel� Core� i7


Processor generation



13th gen Intel� Core� i7


Processor manufacturer



Intel


Processor model



i7-1360P


Processor threads



16


Processor special features



Embedded options available



No


Execute Disable Bit



Yes


Intel Flex Memory Access



Yes


Intel ME Firmware Version



16.1


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� High Definition Audio (Intel� HD Audio)



Yes


Intel� Optane� Memory Ready



No


Intel� Platform Trust Technology (Intel� PTT)



Yes


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



11.2 cm


Product Height



3.7 cm


Product Width



11.7 cm


Storage



Number of storage drives supported



2


NVMe



Yes


SSD form factor



M.2


Storage drive interface



PCI Express, Serial ATA


Storage drive sizes supported



M.2


Supported storage drive types



SSD


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
