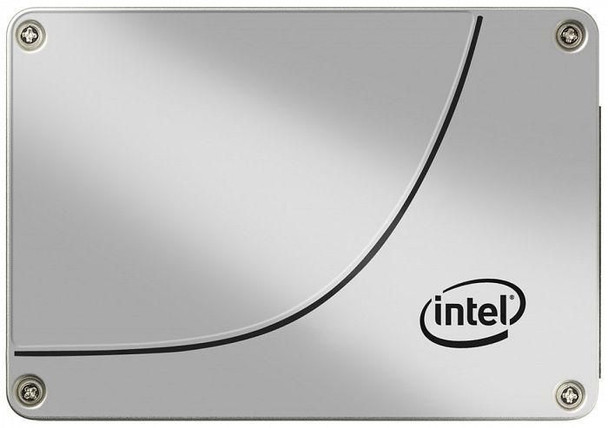

Intel SSDSC2BA200G4 Dc S3710 2.5" 200 Gb Serial SSDSC2BA200G4

Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel� NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

Brand-specific features



Intel High Endurance Technology (HET)



Yes


Features



Data transfer rate



6 Gbit/s


End-to-End Data Protection



Yes


Enhanced Power Loss Data Protection technology



Yes


Interface



Serial ATA III


Lithography



20 nm


Market segment



Server


Mean time between failures (MTBF)



2000000 Hour


Memory type



MLC


Random read (100% span)



85000 IOPS


Random write (100% span)



43000 IOPS


Read latency



55 �s


Read speed



550 MB/s


Security algorithms



256-bit AES


SSD ARK ID



82939


SSD capacity



200 GB


SSD form factor



2.5"


SSD temperature monitoring



Yes


SSD usage tag



Data center


Windows operating systems supported



Y, Yes


Write latency



66 �s


Write speed



300 MB/s


Operational conditions



Non-operating vibration



3.13 G


Operating temperature (T-T)



0 - 70 �C


Operating vibration



2.17 G


Other features



Born on date



Q1'15


Drive capacity



200 GB


Internal



Yes


Launch date



2015-01-27T00:00:00


Power consumption (active)



4 Watt


Processor lithography



20 nm


Product brief URL



http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3710-brief.html


Product codename



Haleyville


Product colour



Silver


Product family



Data center SSD


Product name



Intel SSD DC S3710 Series (200GB, 2.5in SATA 6Gb/s, 20nm, MLC)


Product series



Intel DC S3710


Sequential reading



550 MB/s


Sequential writing speed



300 MB/s


SSD endurance rating



3.6PB


SSD hardware encryption



AES 256 bit


SSD power consumption (active)



4.0W


SSD power consumption (idle)



0.6W


SSD shock



1000 G/0.5ms


Status



Launched


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Power consumption (idle)



0.6 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Height



0.7 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
