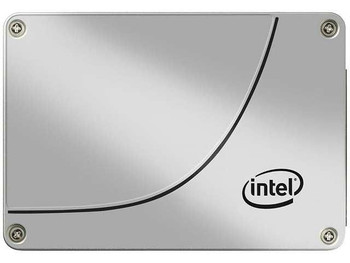

Intel SSDSC2BB480G6-RFB SSD 2.5" 480GB SSDSC2BB480G6-RFB

Enhanced Power Loss Data Protection.
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Brand-specific features



Intel High Endurance Technology (HET)



No


Intel Smart Response Technology version



0.00


Intel� Rapid Start Technology



No


Intel� Smart Response Technology



No


Features



Certification



UL, CE, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO


Data transfer rate



6 Gbit/s


End-to-End Data Protection



Yes


Enhanced Power Loss Data Protection technology



Yes


Hardware encryption



Yes


Interface



Serial ATA III


Lithography



16 nm


Market segment



Server


Mean time between failures (MTBF)



2000000 Hour


Memory type



MLC


Random read (100% span)



68000 IOPS


Random read (4KB)



68000 IOPS


Random read (8KB)



46500 IOPS


Random write (100% span)



15100 IOPS


Random write (4KB)



15100 IOPS


Random write (8KB)



7500 IOPS


Read latency



55 �s


Read speed



500 MB/s


Security algorithms



256-bit AES


SSD ARK ID



86197


SSD capacity



480 GB


SSD form factor



2.5"


SSD temperature monitoring



Yes


SSD usage tag



Data center


TBW rating



275


Windows operating systems supported



Windows 7 Enterprise, Windows 8, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 7 Home Basic x64, Windows 8 Pro, Windows 7 Home Premium, Windows 8 Pro x64, Windows 7 Home Premium x64, Windows 8 x64, Windows 7 Professional, Windows 8.1, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Pro, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 7 Ultimate x64, Windows 8.1 x64


Write latency



66 �s


Write speed



440 MB/s


Operational conditions



Maximum non-operating altitude



40000 m


Maximum operating altitude



15000 m


Non-operating shock



1 kg


Non-operating vibration



3.13 G


Operating relative humidity (H-H)



5 - 95 %


Operating shock



1 kg


Operating temperature (T-T)



0 - 70 �C


Operating vibration



2.17 G


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-55 - 95 �C


Other features



Born on date



Q2'15


Drive capacity



480 GB


Internal



No


Launch date



2015-05-04T00:00:00


Power consumption (active)



5.59 Watt


Processor lithography



16 nm


Product codename



Haleyville


Product colour



Silver


Product family



Data center SSD


Product name



Intel SSD DC S3510 Series (480GB, 2.5in SATA 6Gb/s, 16nm, MLC)


Product series



Intel DC S3510


Sequential reading



500 MB/s


Sequential writing speed



440 MB/s


SSD endurance rating



275 TBW


SSD hardware encryption



AES 256 bit


SSD power consumption (active)



4.45 W


SSD power consumption (idle)



600 mW


SSD shock



1000G/0.5 msec


SSD weight



88 g


Status



Launched


Package dimensions



Gross Weight (Package, kg)



0.61 kg


Power



Power consumption (idle)



0.6 Watt


Power consumption (read)



2.32 Watt


Power consumption (write)



4.45 Watt


Product dimensions



Net Weight (Product, kg)



0.6 kg


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
