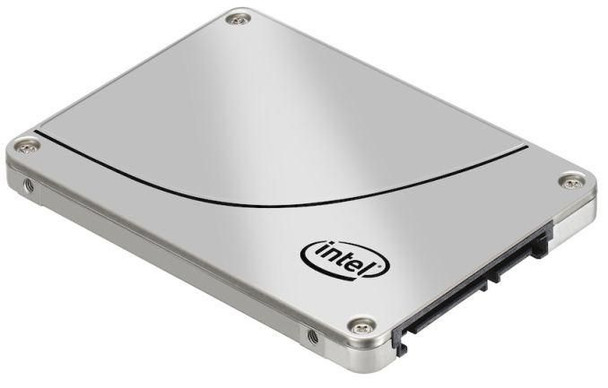

Intel SSDSC2BB800G601 800GB S3510 2.5" MLC SSD SSDSC2BB800G601

Cost-Effective Performance and Reliability
Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel� Solid-State Drive Data Center S3510 Series. The Intel SSD DC S3510 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics.

The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 ?s typical latency with max read latencies of 500 ?s 99.9 percent of the time.

Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3510 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.

Brand-specific features



Intel High Endurance Technology (HET)



No


Intel Smart Response Technology version



0.00


Intel� Rapid Start Technology



No


Intel� Smart Response Technology



No


Features



Data transfer rate



6 Gbit/s


End-to-End Data Protection



Yes


Enhanced Power Loss Data Protection technology



Yes


Hardware encryption



Yes


Interface



Serial ATA III


Lithography



16 nm


Market segment



Server


Mean time between failures (MTBF)



2000000 Hour


Memory type



MLC


Random read (100% span)



67000 IOPS


Random read (4KB)



6700 IOPS


Random write (100% span)



15300 IOPS


Random write (4KB)



15300 IOPS


Read latency



55 �s


Read speed



500 MB/s


Security algorithms



256-bit AES


SSD ARK ID



86199


SSD capacity



800 GB


SSD form factor



2.5"


SSD temperature monitoring



Yes


SSD usage tag



Data center


Write latency



66 �s


Write speed



460 MB/s


Logistics data



Harmonized System (HS) code



84717070


Operational conditions



Non-operating shock



1 kg


Non-operating vibration



1 kg


Operating shock



1 kg


Operating temperature (T-T)



0 - 70 �C


Operating vibration



1 kg


Other features



Drive capacity



800 GB


Intel Rapid Start Technology version



0


Internal



Yes


Last change



63903513


Launch date



Q2'15


Processor lithography



16 nm


Product codename



Haleyville


Product family



Data center SSD


Product series



Intel DC S3510


Sequential reading



500 MB/s


Sequential writing speed



460 MB/s


SSD endurance rating



450 TBW


SSD hardware encryption



AES 256 bit


SSD power consumption (active)



4.74 W


SSD power consumption (idle)



700 mW


SSD shock



1000G/0.5 msec


SSD weight



88 g


Status



Discontinued


Package dimensions



Gross Weight (Package, kg)



0.1 kg


Power



Power consumption (idle)



0.7 Watt


Product dimensions



Net Weight (Product, kg)



0.03 kg


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
