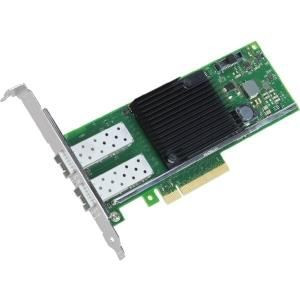

Intel X710DA2G2P5 X710-Da2 Internal Fiber 40000 X710DA2G2P5

Intel� Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel� Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Intel� Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Design



Internal



Yes


Product colour



Green, Silver


Network



Cabling technology



10GBase-T


Ethernet interface type



40 Gigabit Ethernet


Ethernet LAN data rates



40000


iSCSI support



Yes


LAN controller



Intel� X550


Maximum data transfer rate



40000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad


VLAN tagging



Yes


Operational conditions



Operating temperature (T-T)



0 - 55 �C


Storage relative humidity (H-H)



0 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Other features



Cable type



SFP+ Direct Attached Twinaxial Cabling up to 10m


Data transfer rate



8 GT/s


Ethernet adapter ARK ID



83964


Fiber Channel over Ethernet



No


Intel Data Direct I/O Technology



Yes


Intel Ethernet Power Management



Yes


Intel Flexible Port Partitioning



Yes


Intel Virtual Machine Device Queues (VMDq)



Yes


Intel Virtualization Technology for Connectivity (VT-c)



Yes


Intelligent Offloads



Yes


Interface type



PCIe v3.0 (8.0 GT/s)


iWARP/RDMA



No


Number of VLANs



4096


On-chip QoS and Traffic Management



Yes


PCI-SIG* SR-IOV Capable



Yes


Product codename



Fortville


Product family



Intel 10 Gigabit server adapter


Product series



Intel Converged X710


Product type



13


Status



Launched


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connectivity technology



Wired


Fiber ports quantity



2


Host interface



PCI Express


Interface



Fiber


PCI Card form factor



Half-height (low-profile)


Product dimensions



Net Weight (Product, kg)



0.2 kg


System requirements



Compatible operating systems



intel.com/support/EthernetOS


Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
