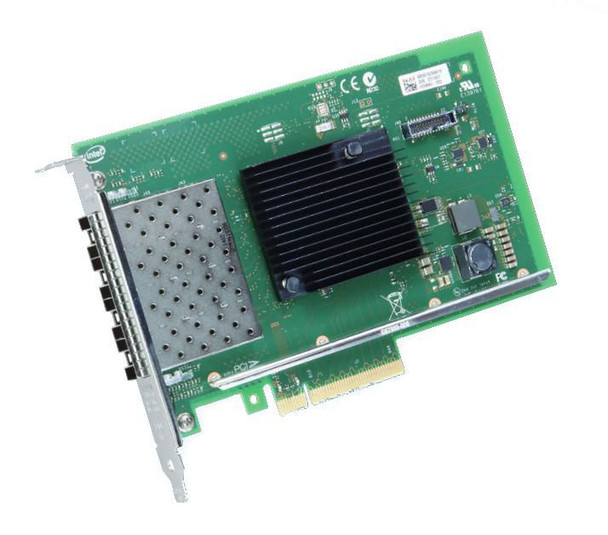

Intel X710DA4FH INTEL ETHERNET X710DA4FH SVR X710DA4FH

Intel� Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Intel� Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel� Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Design



Certification



FCC B, UL, CE, VCCI, BSMI, CTICK, KCC


Chipset



XL710-AM1


Internal



Yes


LED indicators



Y, Yes


Product colour



Black, Green


Logistics data



Harmonized System (HS) code



85176990


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 1000


Fiber ethernet cabling technology



10GBASE-LR, 10GBASE-SR


LAN controller



Intel� XL710-BM1


Maximum data transfer rate



10000 Mbit/s


Maximum operating distance



10 m


Networking standards



IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad


Supported network protocols



TCP, UDP, IP


VLAN tagging



Yes


Operational conditions



Operating temperature (T-T)



0 - 55 �C


Storage relative humidity (H-H)



35 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Other features



Born on date



Q4'14


Bracket height



Full-Height (FH)


Cable type



SFP+ Direct Attached Twin Axial Cabling up to 10m


Cabling type



SFP+ Direct Attached Twin Axial Cabling up to 10m


Commodity Classification Automated Tracking System (CCATS)



NA


Conflict-Free



Yes


Controller type



Intel� Ethernet Controller X710


Embedded options available



No


Ethernet adapter ARK ID



83965


Export Control Classification Number (ECCN)



5A991


Fiber Channel over Ethernet



Yes


Flow control support



Yes


Intel Data Direct I/O Technology



Yes


Intel Ethernet Power Management



Yes


Intel Flexible Port Partitioning



Yes


Intel Trusted Execution Technology



No


Intel Virtual Machine Device Queues (VMDq)



Yes


Intel Virtualization Technology for Connectivity (VT-c)



Yes


Intel� Virtualization Technology (Intel� VT)



VT-c


Intelligent Offloads



Yes


Interface type



PCIe v3.0 (8.0 GT/s)


iWARP/RDMA



No


Last change



64826826


Launch date



Q4'14


Low halogen options available



No


Management protocols



PXE, SNMP, RMON


Market segment



Server


Message signal interrupt



No


Network interface card cable medium



Copper


Network interface card type



Server


Number of VLANs



4096


On-chip QoS and Traffic Management



Yes


PCI-SIG* SR-IOV Capable



Yes


Processor family



700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)


Product brief URL



https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html


Product codename



Fortville


Product family



Intel 10 Gigabit server adapter


Product name



Intel Ethernet Converged Network Adapter X710-DA4


Product series



700 Series Network Adapters (up to 40GbE)


Product type



Network Interface Card


Speed & slot width



8.0 GT/s, x8 Lane


Status



Launched


Storage Over Ethernet



iSCSI NFS


Storage-over-ethernet



Yes


Target market



Artificial Intelligence, High Performance Computing


Package dimensions



Gross Weight (Package, kg)



0.08 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



4


Fiber optic connector



SFP+


Fiber ports quantity



4


Host interface



PCI Express


Interface



Fiber


PCI Card form factor



Full-height


PCI version



3.0


Power



Power consumption (typical)



6.9 Watt


Product dimensions



Net Weight (Product, kg)



0.07 kg


Product Depth



16.71 cm


Product Width



11.11 cm


System requirements



Compatible operating systems



https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html


Linux operating systems supported



RedHat EL Linux 6.0


Other operating systems supported



FreeBSD


Server operating systems supported



Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
