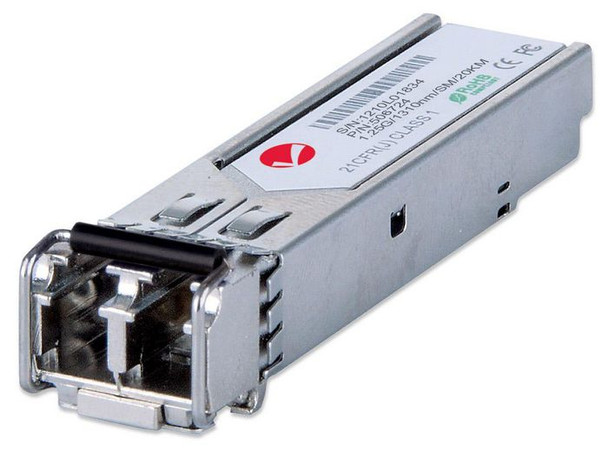

Intellinet 506724 Gigabit Fiber SFP Optical 506724

The new Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceiver provides the best combination of performance and affordability. This mini-GBIC (Gigabit Interface Converter) module provides a metal housing to reduce electromagnetic interference and increases durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver is available as a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Multi-Vendor Compatible _x000D_
Compatibility in your network is everything, and the Intellinet SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other MSA-compliant, SFP-enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor on GLC-LH-SM, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market.

Features



Certification



FCC Class A, CE, RoHS, IEC-60825


Hot-Plug support



Yes


Product colour



Aluminium


Logistics data



Harmonized System (HS) code



85369010


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Packaging data



Number of products included



1 pc(s)


Performance



Duplex system



Full, Half


Ethernet interface type



Gigabit Ethernet


Fiber cable diameters supported (core/cladding)



9/125


Fiber optic connector



LC


Interface type



mini-GBIC


Link budget



8 dB


Maximum data transfer rate



1000 Mbit/s


Maximum transfer distance



20000 m


Multi-mode fiber (MMF) supported



No


Networking standards



IEEE 802.3z


SFP transceiver standard



LX


SFP transceiver type



Fiber optic


Single-mode fiber (SMF) supported



Yes


Tx power (max)



-3 dBmW


Tx power (min)



-8 dBmW


Wavelength



1310 nm


Power



Input voltage



3.3 V


Power consumption (typical)



1 Watt


Product dimensions



Net Weight (Product, kg)



0.062 kg


Product Depth



5.5 cm


Product Height



1.2 cm


Product Width



1.3 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
