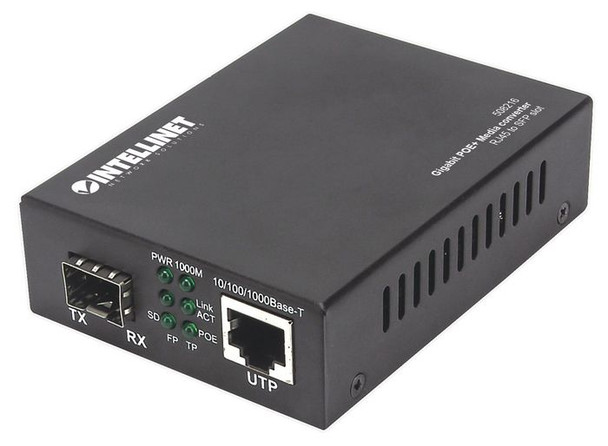

Intellinet 508216 Gigabit Poe+ Media Converter. 508216

The Intellinet Network Solutions Gigabit PoE+ Media Converter offers simplified migration from copper-based Ethernet to Fibre Ethernet while providing power to a compatible device at up to 30 watts. The device creates the easy expansion of existing networks with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expand the Size of an Existing Network.

The converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Since it offers building-to-building connectivity without the cost and disruption associated with the installation of additional routers, network admins can quickly incorporate this converter into their current setup and keep the network running like it should.

Power-over-Ethernet-Plus Capable

The Intellinet Gigabit PoE+ Media Converter brings power to where there is none, obviating the need to hire an electrician and run electrical lines. And because the converter supports the IEEE 802.3at / 802.3af standard, up to 30 watts is available for any compatible device.

Cabling Flexibility

Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Design



Certification



FCC 15


Housing material



Metal


Internal



No


International Protection (IP) code



IP30


LED indicators



Activity, Link, PoE, Power


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Cable types supported



Cat5


Converter input interface



1000Base-T


Duplex system



Full, Half


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



5 - 80 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging content



AC adapter included



Yes


Manual



Yes


Performance



Maximum transfer distance



120000 m


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SFP


Fiber ports quantity



1


Power



Input current



0.5 A


Input voltage



56 V


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



9.5 cm


Product Height



2.5 cm


Product Width



7 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
