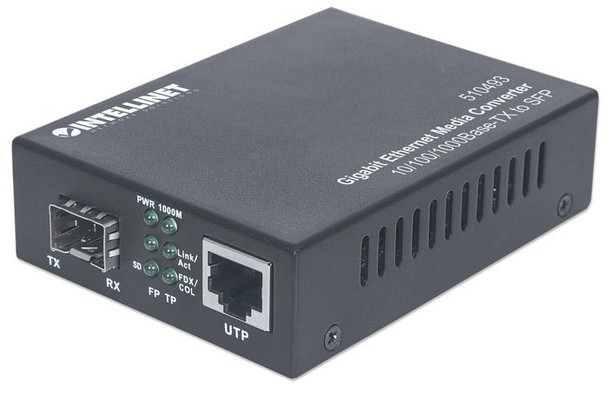

Intellinet 510493 Gigabit Ethernet to SFP Media 510493

The Intellinet Network Solutions Gigabit Ethernet to SFP Media Converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.

Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Design



Certification



FCC Class A, CE


Housing material



Metal


Internal



No


LED indicators



Link, Power


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDI/MDI-X



Yes


Cable types supported



Cat5e, Fiber


Converter input interface



10Base-T, 100Base-TX, 1000Base-TX


Data transfer rate



1000 Mbit/s


Duplex system



Full


Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 70 �C


Packaging content



User guide



Yes


Performance



Maximum transfer distance



100 m


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SFP


Fiber ports quantity



1


Power



External power adapter



Yes


Input current



1.2 A


Input voltage



12 V


Power consumption (max)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.17 kg


Product Depth



9.6 cm


Product Height



2.6 cm


Product Width



7 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
