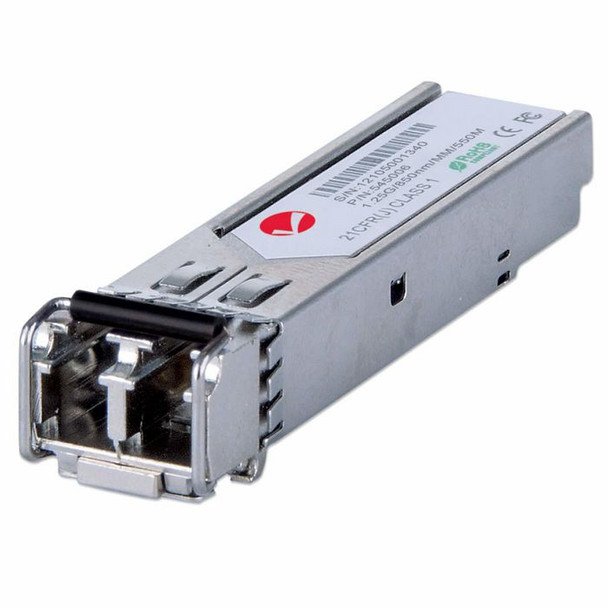

Intellinet 545006 Transceiver Module Optical. 545006

Gigabit Fibre SFP Optical Transceiver Module_x000D_
_x000D_
_x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
_x000D_
_x000D_
_x000D_
Small Size for High-Density Fibre Connections_x000D_
_x000D_
_x000D_
_x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room._x000D_
_x000D_
_x000D_
_x000D_
Multi-Vendor Compatible_x000D_
_x000D_
_x000D_
_x000D_
Compatibility in your network is everything, and the Intellinet SFP Transceiver Module (model 545006) delivers. Use it with any Intellinet SFP equipped network switch or any other MSA (multi source agreement) compliant SFP enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor pn GLC-SX-MM, compatibility to your Cisco gear is provided._x000D_
_x000D_
_x000D_
_x000D_
Hot-Pluggable_x000D_
_x000D_
_x000D_
_x000D_
No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market._x000D_

Features



Certification



FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA


Form factor



SFP


Hot-Plug support



Yes


Product colour



Aluminium


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.03 kg


Packaging data



Number of products included



1 pc(s)


Performance



Duplex system



Full


Ethernet interface type



Gigabit Ethernet


Fiber cable diameters supported (core/cladding)



50/125, 62.5/125


Fiber ethernet cabling technology



1000BASE


Fiber optic connector



LC


Interface type



SFP


Link budget



8 dB


Maximum data transfer rate



1000 Mbit/s


Maximum transfer distance



550 m


Multi-mode fiber (MMF) supported



Yes


Networking standards



IEEE 802.3z


SFP transceiver type



Fiber optic


Tx power (max)



-3 dBmW


Tx power (min)



-8 dBmW


Wavelength



850 nm


Power



Input voltage



3.3 V


Power consumption (typical)



1 Watt


Product dimensions



Net Weight (Product, kg)



0.02 kg


Product Depth



5.5 cm


Product Height



1.2 cm


Product Width



1.3 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
