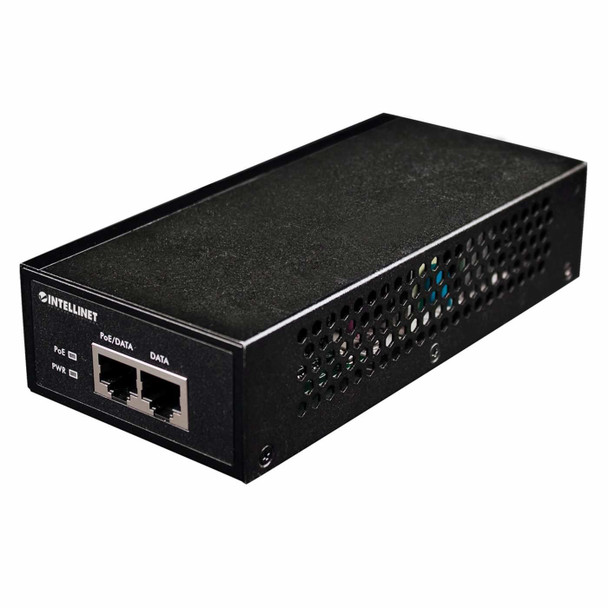

Intellinet 560566 Gigabit High-Power PoE+ Inject 560566

Reduce costs by using existing Cat5 cable to provide both power and data.

The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices.

Reduce Wiring Costs
No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Protect Your Equipment
Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.

Design



Certification



FCC Class B Part 15, CE 89/336/EEC


Housing material



Metal


Internal



Yes


LED indicators



PoE, Power


Product colour



Black


Features



Certification



FCC Class A Subpart B, CE, RoHS, UKCA, NDAA


Housing material



Metal


LED indicators



PoE, Power


Power protection features



Over voltage, Overload, Short circuit


Product colour



Black


Logistics data



Harmonized System (HS) code



85044095


Network



Cable types supported



Cat5, Cat5e


Converter input interface



1000Base-T, 100Base-TX


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



5 - 45 °C


Storage temperature (T-T)



-20 - 55 °C


Package dimensions



Gross Weight (Package, kg)



1.5 kg


Packaging content



Manual



Yes


Number of products included



1 pc(s)


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Power



AC input frequency



50 - 60 Hz


Input voltage



100 - 240 V


Power consumption (max)



42 Watt


Product dimensions



Net Weight (Product, kg)



1.2 kg


Product Depth



15.4 cm


Product Height



3.5 cm


Product Width



7.2 cm


Technical details



Harmonized System (HS) code



85044090


Vendor information



Brand Name


Intellinet
