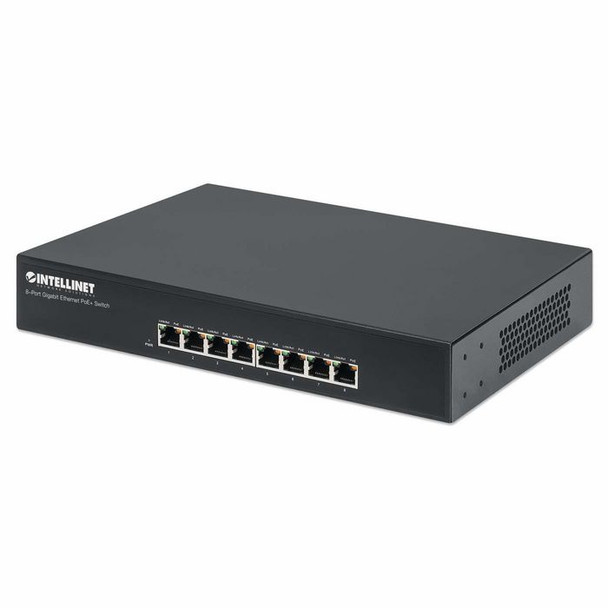

Intellinet 560641 8-Port Gigabit Ethernet Poe+ 560641

When you need power for compatible devices, Power over Ethernet provides it._x000D_
_x000D_
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps._x000D_
_x000D_
Save installation time and money with PoE 802.3at._x000D_
_x000D_
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (e.g., legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
* Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.

Data transmission



MAC address table



8000 entries


Packet buffer memory



256 MB


Store-and-forward



Yes


Switching capacity



16 Gbit/s


Design



Certification



FCC Class B, VCCI Class B, CE, RoHS, EN 60950-1


Housing material



Metal


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



10G support



No


Copper ethernet cabling technology



1000BASE-T, 100BASE-TX, 10BASE-T


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 70 �C


Other features



Power LED



Yes


Package dimensions



Gross Weight (Package, kg)



3.32 kg


Packaging data



Cables included



AC


Manual



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power connector



DC-in jack


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



150 Watt


Power source



AC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



2.55 kg


Product Depth



18 cm


Product Height



4.4 cm


Product Width



28 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
