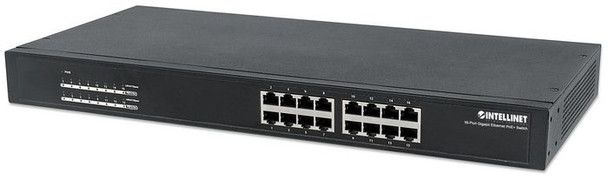

Intellinet 560993 16-Port Gigabit Ethernet PoE+ 560993

Save installation time and money with PoE.

The Intellinet Network Solutions 16-Port Gigabit Ethernet Rackmount PoE+ Switch (560993) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 16 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps.

Power over Ethernet 802.3at
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter.

Extreme Throughput
With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices.

* Total PoE budget for this switch is 220 watts.

Data transmission



Forwarding rate



1.488 Mpps


MAC address table



8192 entries


Store-and-forward



Yes


Switching capacity



32 Gbit/s


Design



Certification



FCC Class B, VCCI Class A, CE, RoHS


Form factor



1U


Housing material



Metal


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch layer



L2


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Cable types supported



Cat3, Cat4, Cat5, Cat5e


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-10 - 70 �C


Packaging data



Cables included



AC


Manual



Yes


Rack mount kit



Yes


Performance



Buffer size



256 KB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



16


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



260 Watt


Power protection features



Over voltage, Overload, Short circuit


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



3.8 kg


Product Depth



20.8 cm


Product Height



4.4 cm


Product Width



44.2 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
