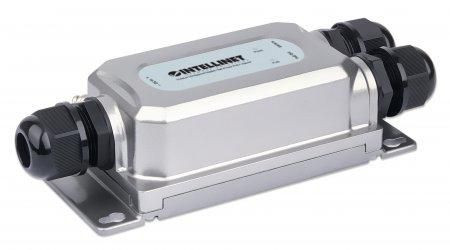

Intellinet 561778 Outdoor Vandalproof Gigabit 561778

Outdoor Gigabit PoE+ Injector - 30 W for an IEEE 802.3at Powered Device
The Intellinet Network Solutions Outdoor Vandalproof Gigabit High-Power PoE+ Injector lets you connect your IEEE 802.3af/at-compliant wireless access point, IP phone, network camera and more to a non-PoE LAN switch port so it can supply both a power and a network connection up to 100 meters (328 ft.) away. This injector has an output power rating up to 30 watts, which is enough for many power-hungry PoE devices.

Hardened design for outdoor and industrial use
This PoE+ injector is the right power and data connector for its suitability to a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating, vast operating temperature range of -40 - 75�C (-4 - 140�F) and vandal-proof IK10 score make this Power over Ethernet injector able to withstand harsh conditions and industrial environments. Beyond that, it has ratings for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6).

Reduced wiring costs
There's no need to run AC power lines to get your PD set up and working. Once you've quickly wired DC power to the Injector through its two-pin terminal block, simply connect this PoE+ Injector to the LAN switch port, and use the existing Cat5/6/6a cabling to deliver DC power as well as transfer data at 10/100/1000 Mbps speeds up to 100 m (328 ft.) away.

Safe protection for your expensive network equipment
The auto-sensing technology of this high-power PoE Injector ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages. Port surge protection up to 6 kV and ESD protection up to 8 kV make its safety complete.

Wall-mount option
For full installation flexibility indoors or outdoors, you can mount the injector on the wall through its four built-in holes. The required mounting kit comes included in the package.

Features



Certification



FCC Class A, CE, RoHS


International Protection (IP) code



IP67


LED indicators



Yes


Maximum operating distance



100 m


Plug and Play



Yes


Product colour



Black, Grey


Terminal block port



Yes


Logistics data



Harmonized System (HS) code



85044095


Network



Cable types supported



Cat5e, Cat6, Cat6a


Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Power over Ethernet (PoE)



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-40 - 75 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 80 �C


Package dimensions



Gross Weight (Package, kg)



0.88 kg


Packaging content



Manual



Yes


Number of products included



1 pc(s)


Ports & interfaces



RJ-45 input ports



1


Power



DC output voltage



55 V


Input current



1.5 A


Input voltage



24 - 56 V


Output current



0.6 A


Output power



30 Watt


Power consumption (max)



36 Watt


Surge protection voltage



6 kV


Product dimensions



Net Weight (Product, kg)



0.68 kg


Product Depth



15 cm


Product Height



4.4 cm


Product Width



7.3 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
