Intellinet
Intellinet 790741 Cat6A 10G Shielded Toolless 790741
- UPC:
- 0766623790741
- MPN:
- 790741
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

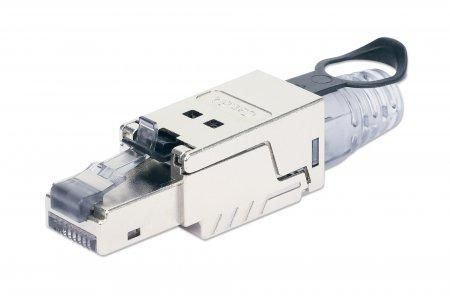

Field-installable Cat6a STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly
The Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug with Pull-ring Release from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations even when out in the field for such devices as security cameras, industrial electronics and more. Without any special tools, the cable can be assembled within two minutes. This plug is suitable for both stranded and solid conductor cables for high-performance network applications up to 10GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360� STP shielding. A built-in pull-ring release tab makes disconnecting from the RJ45 port easier, especially in hard-to-reach places.
Features
Cable shielding
U/FTP (STP)
Cable standard
Cat6a
Certification
CE RoHS FCC ISO/IEC 11801 IEC 60603-7-51 Cat5 (ANSI/TIA/EIA-568-D) Cat5e (TIA/EIA-568-D) Cat6 (ANSI/TIA-568-D) Cat6a (ANSI/TIA-568-D)
Connector contacts plating
Gold
Connector form factor
Straight
Connector gender
Male
Connector(s)
RJ45
Current
1.5 A
Product colour
Stainless steel
Operational conditions
Operating temperature (T-T)
-10 - 60 �C
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Gross Weight (Package, kg)
0.13 kg
Product dimensions
Net Weight (Product, kg)
0.1 kg
Product Depth
6.3 cm
Product Height
1.7 cm
Product Width
1.4 cm
Vendor information
Brand Name
Intellinet
Warranty
1 Year(s)
