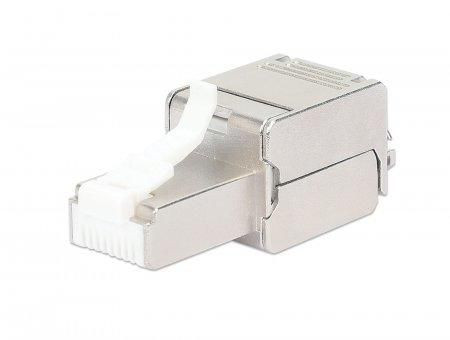

Intellinet 790796 Cat6A 10G Shielded Toolless 790796

Field-installable Cat6a STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly

The Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations, even when out in the field for such devices as security cameras, industrial electronics and more. Without any special tools, the cable can be assembled within two minutes. This plug is suitable for both stranded and solid conductor cables for high-performance network applications up to 10GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360� STP shielding.

Features



Cable shielding



U/FTP (STP)


Cable standard



Cat6a


Certification



CE RoHS FCC ISO/IEC 11801 IEC 60603-7-51 Cat5 (ANSI/TIA/EIA-568-D) Cat5e (TIA/EIA-568-D) Cat6 (ANSI/TIA-568-D) Cat6a (ANSI/TIA-568-D)


Connector contacts plating



Gold


Connector form factor



Straight


Connector gender



Male


Connector(s)



RJ45


Contact resistance



20 m?


Current



1.5 A


Product colour



Stainless steel


Operational conditions



Operating temperature (T-T)



-10 - 60 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.18 kg


Product dimensions



Net Weight (Product, kg)



0.14 kg


Product Depth



4.1 cm


Product Height



1.8 cm


Product Width



1.5 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
