Inter-Tech

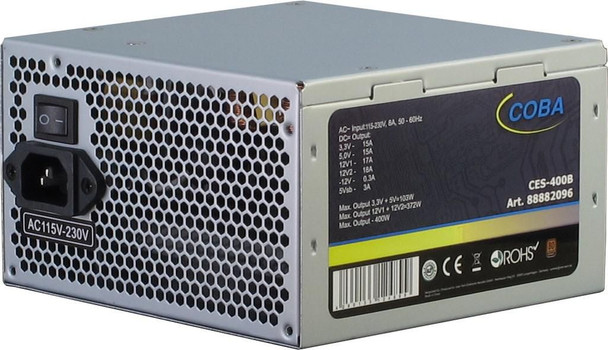

Inter-Tech 88882096 Coba Ces-400B 80+ Power 88882096
- UPC:
- 0000000000000
- MPN:
- 88882096
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Coba CES-400B 80+ is specifically designed for the demands of assemblers. As a mere bulk product it saves the cost for the retail packages which naturally has a positive effect on the final price.
For the same reason Inter-Tech choose a plain design to place the main priorities on the technical aspects. Whether it is the super silent 120mm fan, the big numbers of connectors (P4+4, PCI-Express etc.) or the two separated 12V-lines, Coba CES-400B 80+ will satisfied all demands.
To prove its high quality standards the power supply has fulfilled all requirements for the 80PLUS� certification. That means that a high efficiency of the power supply is guaranteed and this is not only good for the environment but also helps to safe your money.
Design
Cooling type
Active
Fan diameter
12 cm
Fan location
Side
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Silver
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Gross Weight (Package, kg)
1.74 kg
Performance
80 PLUS certification
80 PLUS Bronze
ATX version
2.3
Noise level
25 dB
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
CPU power connector (4+4 pin)
Yes
Floppy drive power connector
1
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
115 - 230 V
Combined power (+3.3V)
103 Watt
Combined power (+5V)
103 Watt
Input current
5 A
Max output current (-12V)
0.3 A
Max output current (+12V1)
17 A
Max output current (+12V2)
18 A
Max output current (+3.3V)
15 A
Max output current (+5V)
15 A
Max output current (+5Vsb)
3 A
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Over current, Short circuit
Total power
400 Watt
Product dimensions
Net Weight (Product, kg)
1.34 kg
Product Depth
14 cm
Product Height
8.6 cm
Product Width
15 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Inter-Tech
Warranty
1 Year(s)
View AllClose
For the same reason Inter-Tech choose a plain design to place the main priorities on the technical aspects. Whether it is the super silent 120mm fan, the big numbers of connectors (P4+4, PCI-Express etc.) or the two separated 12V-lines, Coba CES-400B 80+ will satisfied all demands.
To prove its high quality standards the power supply has fulfilled all requirements for the 80PLUS� certification. That means that a high efficiency of the power supply is guaranteed and this is not only good for the environment but also helps to safe your money.
Design
Cooling type
Active
Fan diameter
12 cm
Fan location
Side
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Silver
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Gross Weight (Package, kg)
1.74 kg
Performance
80 PLUS certification
80 PLUS Bronze
ATX version
2.3
Noise level
25 dB
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
CPU power connector (4+4 pin)
Yes
Floppy drive power connector
1
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
115 - 230 V
Combined power (+3.3V)
103 Watt
Combined power (+5V)
103 Watt
Input current
5 A
Max output current (-12V)
0.3 A
Max output current (+12V1)
17 A
Max output current (+12V2)
18 A
Max output current (+3.3V)
15 A
Max output current (+5V)
15 A
Max output current (+5Vsb)
3 A
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Over current, Short circuit
Total power
400 Watt
Product dimensions
Net Weight (Product, kg)
1.34 kg
Product Depth
14 cm
Product Height
8.6 cm
Product Width
15 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Inter-Tech
Warranty
1 Year(s)
