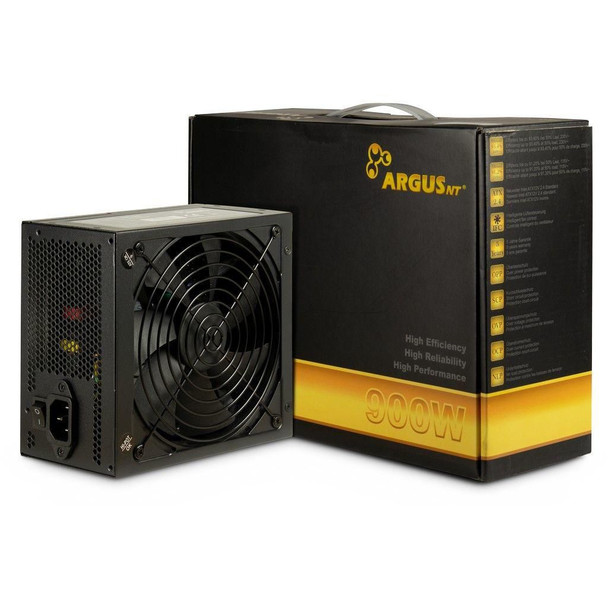

Inter-Tech 88882209 Gps-900 Power Supply Unit 900 88882209

The GPS series from Argus stands for powerful and reliable power supplies in the levels 600W, 700W, 800W and 900W. Whether for upgrading existing systems or for configuring new ones, thanks to 80PLUS Gold 230V EU certification and state-of-the-art components, the GPS series will keep you up to date. To secure the built-in hardware and the power supply unit itself, we did not make any compromises and have equipped the power supply units of the GPS series with a total of five protective circuits (OPP, SCP, OVP, OCP and NLP).

The entire GPS series is equipped with a smooth-running 140mm fan and an intelligent fan control, or IFC for short. The IFC ensures that the fan of the power supply only starts cooling when the internal temperature of the power supply exceeds 65�C. If the internal temperature falls below 65�C, the fan is switched back to idle mode - this keeps the noise level of the power supply unit extremely low.

When it comes to the variety of connections, we also kept an eye on the greatest possible efficiency and, with the exception of the 20+4pin connection, designed all other cable strands as flat ribbon versions - saving space and time when laying. The GPS-900 has four PCIe 6+2pin and six S-ATA connections available. With 75A on the 12V line, there is more than enough power available for potent hardware. We round off the overall package with a 60-month manufacturer's guarantee for the entire GPS series.

Design



Cooling type



Active


Fan diameter



14 cm


Fan location



Top


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



2.7 kg


Packaging content



Cables included



AC


Performance



80 PLUS certification



80 PLUS Gold


ATX version



2.4


Noise level



38.4 dB


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



CPU power connector (4+4 pin)



Yes


EPS power connector (4+4 pin)



Yes


Floppy drive power connector



1


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



6


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power connectors (4-pin)



3


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



900 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Efficiency



90.82 %


Max output current (+12V)



75 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Maximum input current (@110V)



10 A


Maximum input current (@220V)



5 A


Power protection features



Over current, Over power, Over voltage, Short circuit


Total power



900 Watt


Product dimensions



Net Weight (Product, kg)



2.08 kg


Product Depth



16 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Inter-Tech


Warranty



1 Year(s)
