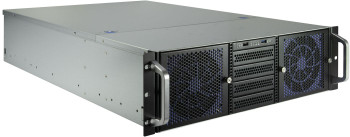

Inter-Tech 88887106 3U-30240 Rack Black 88887106

The IPC 3U-30240 is the perfect rack for a low-priced server system. The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

The IPC 3U-30240 provides the possibility to remove the two HDD cages on both sides and therefore to mount up to six 5.25" external hard drives. In the middle four external 3.5" HDDs are also available.

One 120mm and two 60mm fans guarantee an optimal cooling.

Additional extras like easily reachable USB 3.0 and USB 2.0 connectors and the lid with the snap locks complete this total package.

Cooling



Front fans diameters supported



120


Front fans installed



1x 120 mm


Number of front fans supported (max)



1


Number of rear fans supported (max)



2


Number of side fans supported (max)



6


Rear fans diameters supported



60


Rear fans installed



2x 60 mm


Side fans diameters supported



40


Design



Form factor



Rack


LED indicators



Alarm, HDD, Network, Power


Material



Steel


Number of 2.5" bays



14


Number of 3.5" bays



12


Number of 5.25" bays



6


Number of external 5.25" bays



6


Number of internal 3.5" bays



12


Product colour



Black


Rack capacity



3U


Rack mounting



Yes


Reset button



Yes


Side window



No


Suitable for



Home/Office


Supported motherboard form factors



ATX, Flex-ATX, micro ATX, Mini-ATX, Mini-ITX


Type



Server


Logistics data



Harmonized System (HS) code



84733080


Other features



Peripheral (Molex) power connectors (4-pin)



1


Package dimensions



Depth (package,cm)



56 cm


Gross Weight (Package, kg)



12.81 kg


Height (package,cm)



17.5 cm


Width (package,cm)



56 cm


Ports & interfaces



Audio input



N


Audio output



N


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



9.85 kg


Product Depth



43.5 cm


Product Height



13.35 cm


Product Width



48 cm


Storage



Number of HDDs supported



10


Supported HDD sizes



3.5


Vendor information



Brand Name


Inter-Tech


Warranty



1 Year(s)


Weight & dimensions



Material thickness



1.2 mm
